Product Overview

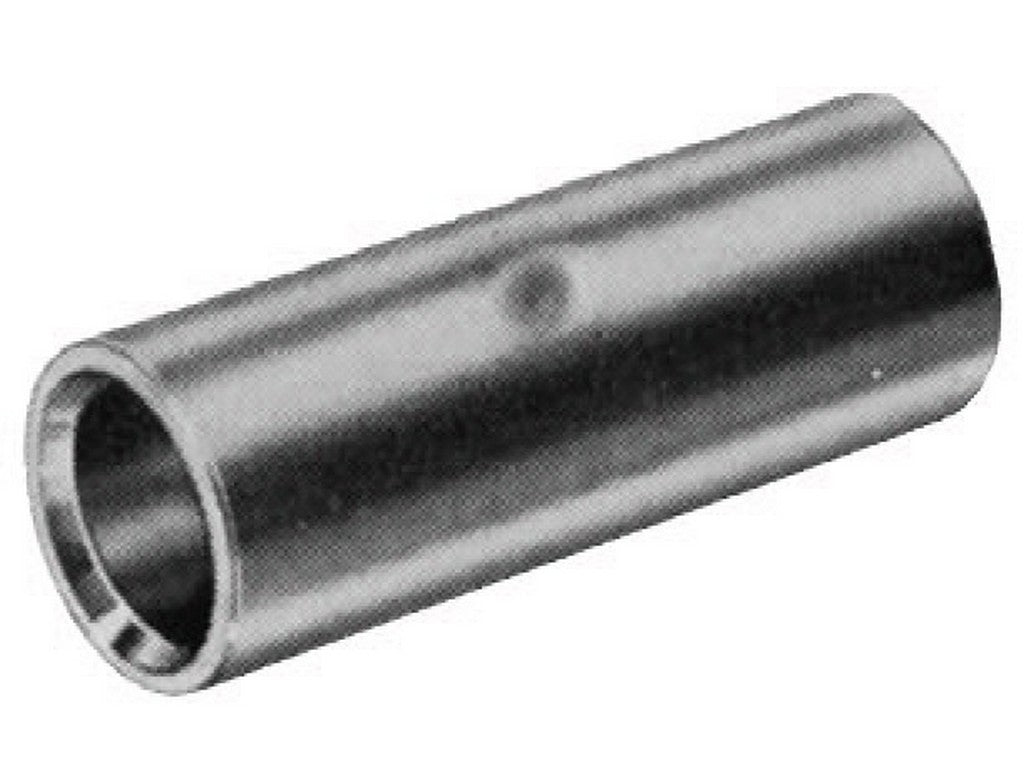

This butt connector ICQ25PVL from WEITKOWITZ is a non-insulated connector designed according to DIN 46341 Part 1, Form B. The product has a nominal cross-sectional area of 25 mm² and is specified for connecting stranded and fine-stranded conductors with different wire cross-sections.Features and Construction
- Type: Butt connector, DIN 46341 Part 1, Form B.
- Nominal cross-section: 25 mm² (specified for ICQ25PVL).
- Dimensions (specified in the manufacturer's product table): length L = 29 mm; inner diameter d1 = 7 mm; inner diameter d3 = 10 mm.
Typical Applications
The ICQ25PVL is used to connect stranded and fine-stranded conductors where a butt connection between wires of different cross-sections is desired. The manufacturer's description explicitly states this application as the purpose of the butt connector type.Pack Size and Weight
- Packaging: 100 pieces per pack (stated on the product page).
- Net weight: 1.13 kg per 100 pcs (stated on the product page).
Documentation
Details and measurements are taken from the manufacturer's product page. For further verification of the stated dimensions and packaging information, please refer to the manufacturer's page.
Product information at Intercable Tools
Specifications
- Product name: ICQ25PVL.
- Manufacturer: WEITKOWITZ.
- Type/standard: Butt connector, DIN 46341 Part 1, Form B.
- Nominal cross-section: 25 mm².
- Length (L): 29 mm.
- Inner diameter d1: 7 mm.
- Inner diameter d3: 10 mm.
- Pack size: 100 pcs per pack.
- Net weight: 1.13 kg per 100 pcs.
