Product Overview

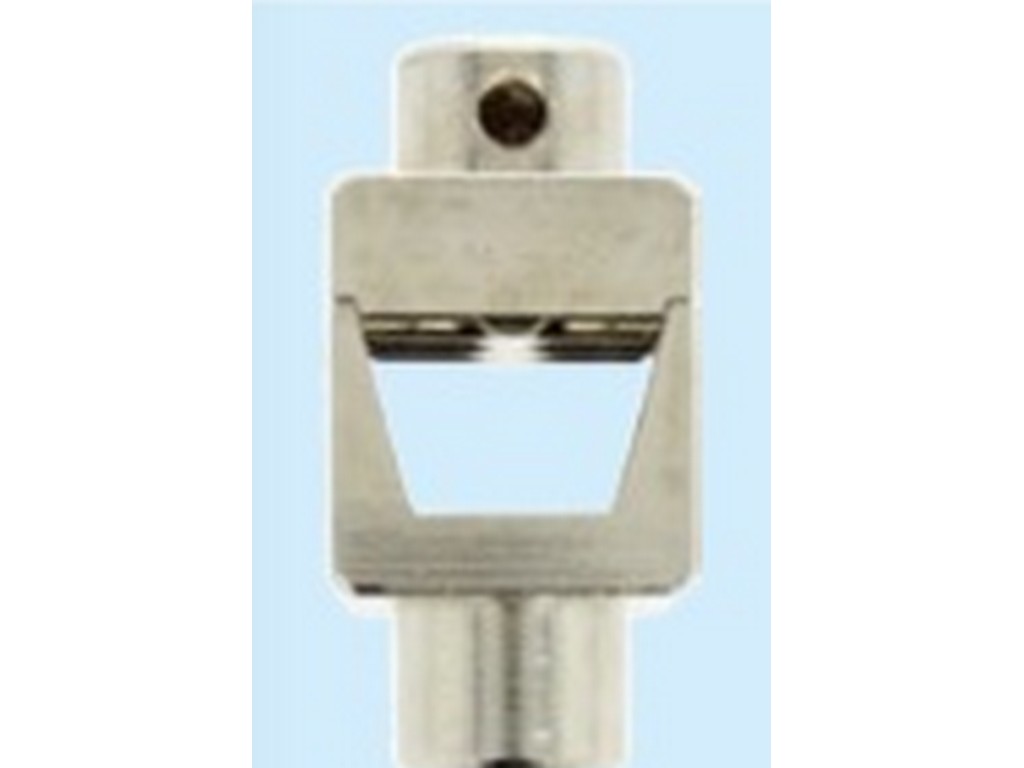

The W903287 is a crimping die (Einsatz) from EISENACHER developed for use in the EAP240 hand crimping tool. The die is specified for cable lugs/terminals of size 185 mm² and is listed by the manufacturer as a matching die for the EAP240 system.What the product does
The W903287 acts as the forming die/crimping tool in the EAP240 hand crimping tool when performing a trapezoidal crimp (Trapezpressung). The die shapes and compresses cable lugs/terminals of the specified cross-sectional size when mounted in the EAP240 unit.Mounting and reference
Mounting of the W903287 die takes place in the EAP240's die/piston and guide assembly as described by the manufacturer's assembly instructions. For detailed mounting sequence and component orientation, EISENACHER refers to their assembly instructions.See data sheet from the manufacturer
Specifications
- Manufacturer: EISENACHER
- Manufacturer No.: W903287
- Product: Crimping die (Einsatz) for hand crimping tool
- Calculated terminal/cable lug size: 185 mm²
- Intended for tool: EAP240 hand crimping tool (listed as matching die)
- Crimping method in the EAP240 system: trapezoidal crimping (Trapezpressung)
- EAP240 compatible ferrule range: 25 mm²–240 mm²
The content is generated using AI – we reserve the right to make errors.
Contact HIN for further information about the product.
