Hand Crimping Tool: EAP240
Description
The EAP240 from EISENACHER is a hand crimping tool that, according to the manufacturer's product page, is specified for crimping wire end ferrules (Aderendhülsen) in the range of 25 mm² to 240 mm². The EAP240 uses trapezoidal crimping (Trapezpressung) and is manufactured by EISENACHER. The product name EAP240 is consistently used in the manufacturer's documentation.Function and Handling
The EAP240 is described by the manufacturer as a manual tool with mechanical drive, with the following points explicitly mentioned on the manufacturer's page:- Application area: Wire end ferrules 25 mm² to 240 mm².
- Crimping principle: trapezoidal crimping (Trapezpressung).
- Interchangeable inserts (specified insert number and corresponding size).
- Parallel guidance of crimping jaws (Parallel geführte Pressbacken) is mentioned as a feature on the product page.

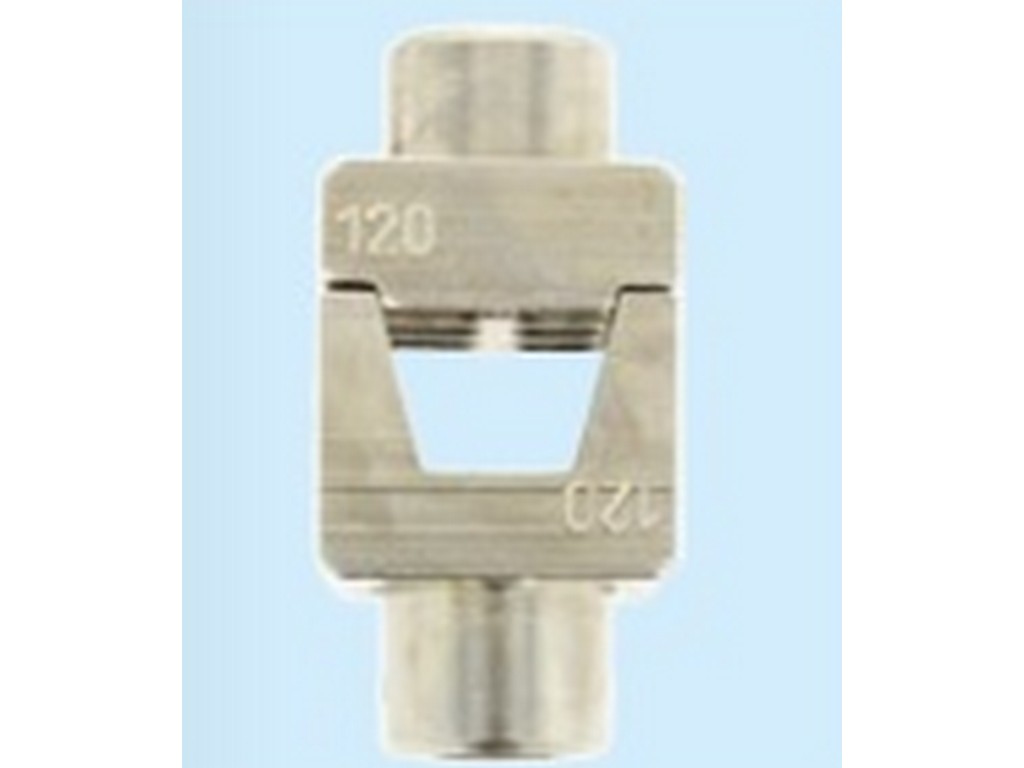

Compatible Inserts
The manufacturer's product page specifies concrete insert numbers and the associated cross-sections:- W903280 – 25 & 35 mm²
- W903282 – 50 mm²
- W903283 – 70 mm²
- W903284 – 95 mm²
- W903285 – 120 mm²
- W903286 – 150 mm²
- W903287 – 185 mm²
- W903288 – 240 mm²
Specifications
- Product Name: EAP240
- Manufacturer: EISENACHER
- Application Area: Wire End Ferrules 25 mm² – 240 mm²
- Crimping Principle: Trapezoidal Crimping (Trapezpressung)
- Compatible Insert Numbers and Sizes: W903280 (25 & 35 mm²), W903282 (50 mm²), W903283 (70 mm²), W903284 (95 mm²), W903285 (120 mm²), W903286 (150 mm²), W903287 (185 mm²), W903288 (240 mm²)
