DIN 46234 ring cable lug – ICQ508

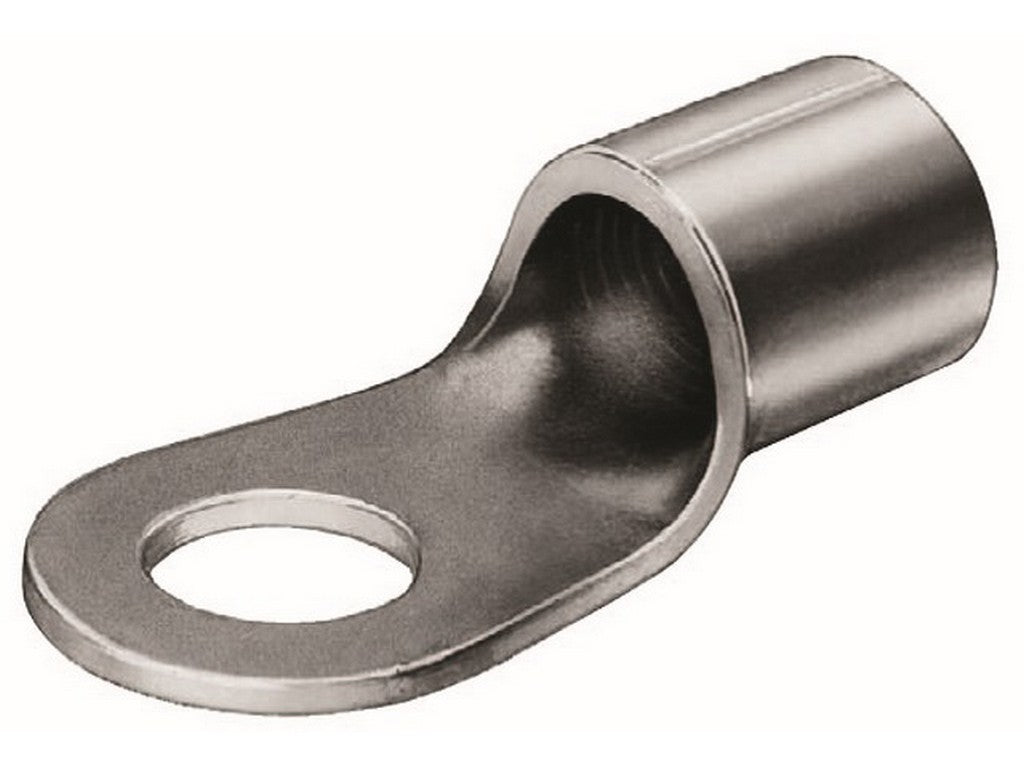

This product is a DIN 46234 crimp ring terminal (Quetschkabelschuh) and is identified as ICQ508. The ICQ508 is specified for multi-stranded and fine-stranded conductors, where the crimping area is hard-soldered. The product is listed in Intercable Tools' product information and provides the dimensions and electrical connection parameters shown in the manufacturer's table.
Technical description
The ICQ508 is a ring cable lug manufactured in accordance with the DIN 46234 type. The specified nominal conductor cross-section is 50 mm², and the metric bolt size is 8 (M8). The crimping area is hard-soldered, and the product is suitable for both multi-stranded and fine-stranded conductors as specified in the product information.
Documentation
Official product data and technical tables can be found in Intercable Tools' catalog. For further reference to the dimensions and weight specifications, please refer to the manufacturer's catalog:
See datasheet from the manufacturer
Typical applications
- Used for connecting multi-stranded conductors.
- Used for connecting fine-stranded conductors.
Specifications
- Product name: ICQ508
- Manufacturer: WEITKOWITZ
- Type: DIN 46234 crimp ring terminal (Quetschkabelschuh)
- Nominal conductor cross-section: 50 mm²
- Bolt size: M8 (8)
- Crimping area: hard-soldered
- Dimensions (stated in manufacturer's table): d1 = 11 mm, D2 = 8 mm, d3 = 18 mm, L = 34 mm, A = 16 mm
- Net weight: 1.71 kg per 100 pcs.
- Manufacturer's item number: ICQ508
