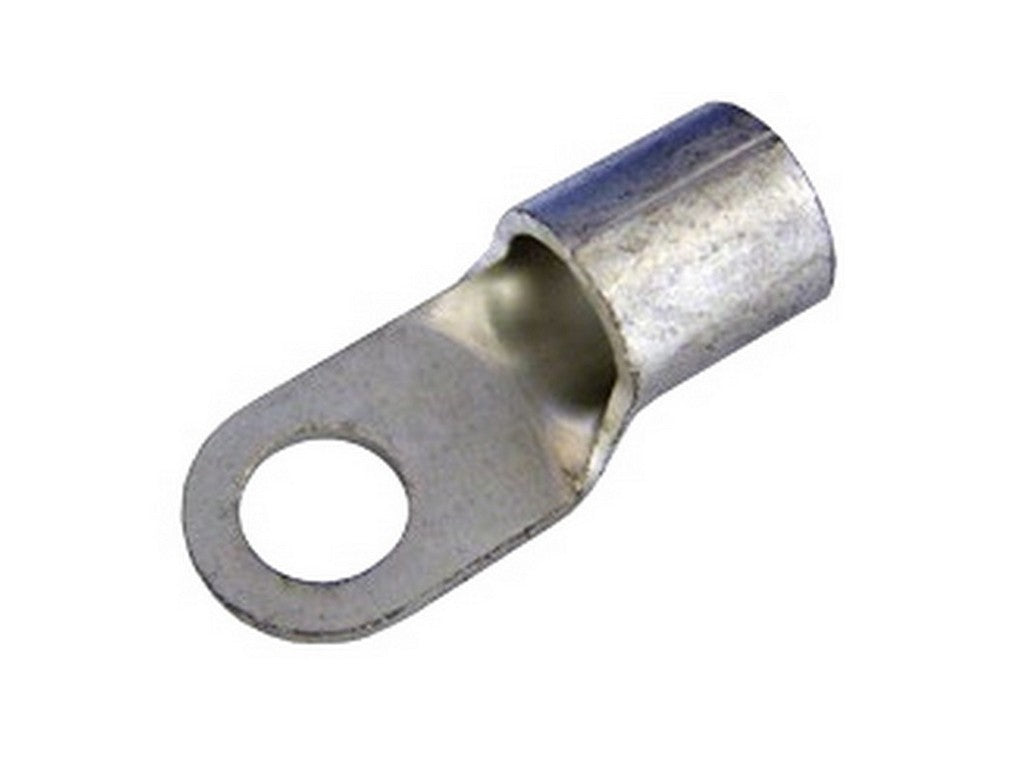

Crimp Terminal DIN 46234 — ICQ506
This crimp terminal (DIN 46234) ICQ506 from WEITKOWITZ is listed on Intercable Tools' product page and is specified for connecting multi-stranded and fine-stranded conductors. The crimping area is stated as "Pressbereich hartverlötet" (hard-soldered crimping area) in the manufacturer's product overview.
Technical Description
The product is listed as type ICQ506 and is designed for a nominal conductor cross-section of 50 mm² with metric bolt size M6. The dimensions provided in the product table are specified below in the Specifications section.
Typical Applications
- Used for connecting multi-stranded and fine-stranded conductors (stated in the manufacturer's product text).
Documentation
The product descriptions and measurement data can be found on the manufacturer's product page. See manufacturer's product page
Specifications
- Type: ICQ506
- Manufacturer: WEITKOWITZ
- Standard: DIN 46234
- Nominal conductor cross-section: 50 mm²
- Bolt size (metric): M6
- Crimping area: hard-soldered ("Pressbereich hartverlötet")
- Dimensions: d1 = 11 mm, D2 = 6 mm, d3 = 18 mm, L = 34 mm, A = 16 mm
- Net weight: 1.76 kg per 100 pcs
- Quantity per package/listing: 100 pcs
