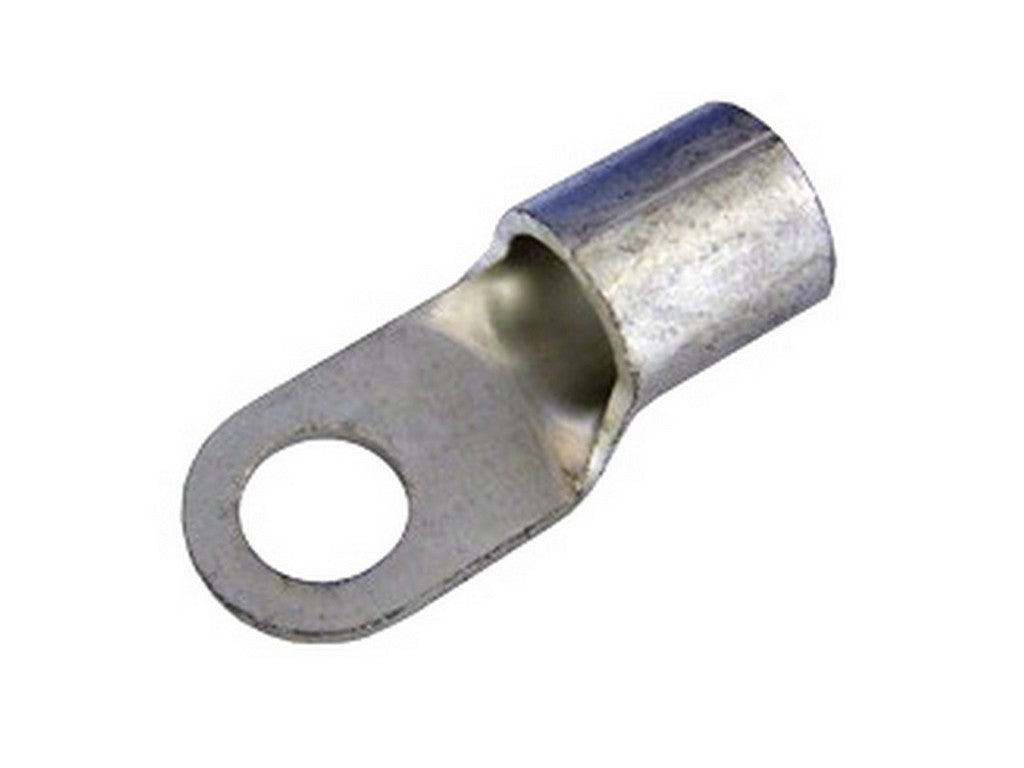

DIN 46234 Cable lug (Type number ICQ5012)
This item is a cable lug according to DIN 46234, specified by Intercable Tools as Type number ICQ5012 and manufactured by WEITKOWITZ. The primary function of the product is as a crimp/press connection for electrical conductors with specified cross-section and metric connection thread.
Key details
- Manufacturer: WEITKOWITZ.
- Type number / manufacturer article: ICQ5012.
- Nominal cross-section: 50 mm².
- Anschlussgewindemaß (connection thread): 12 (metric).
Dimensions
- d1 = 11 mm.
- D2 = 13 mm.
- d3 = 22 mm.
- L = 36 mm.
- A = 16 mm.
Product data and dimensions are provided by Intercable Tools' product page. For further technical details, please refer to the manufacturer's product information.
Product details at Intercable Tools
Typical applications
The product is specified for use with multi-stranded and fine-stranded conductors (specified as "für mehrdrähtige und feindrähtige Leiter" on the manufacturer's page). The crimping area is specified as "Pressbereich hartverlötet" on the product list.
Specifications
- Standard: DIN 46234 (specified by the manufacturer).
- Type number: ICQ5012.
- Manufacturer: WEITKOWITZ.
- Nominal cross-section: 50 mm².
- Anschlussgewindemaß: 12 (metric).
- Dimensions: d1=11 mm, D2=13 mm, d3=22 mm, L=36 mm, A=16 mm.
- Crimping area: specified as "Pressbereich hartverlötet" (for multi-stranded and fine-stranded conductors).
- Net weight: 1.8 kg per 100 pcs (specified on the manufacturer's product page).
