Plate cable lug Cu tinned 35mm-Ø6mm; DIN 46234

Crimp Terminal ICQ356

Description

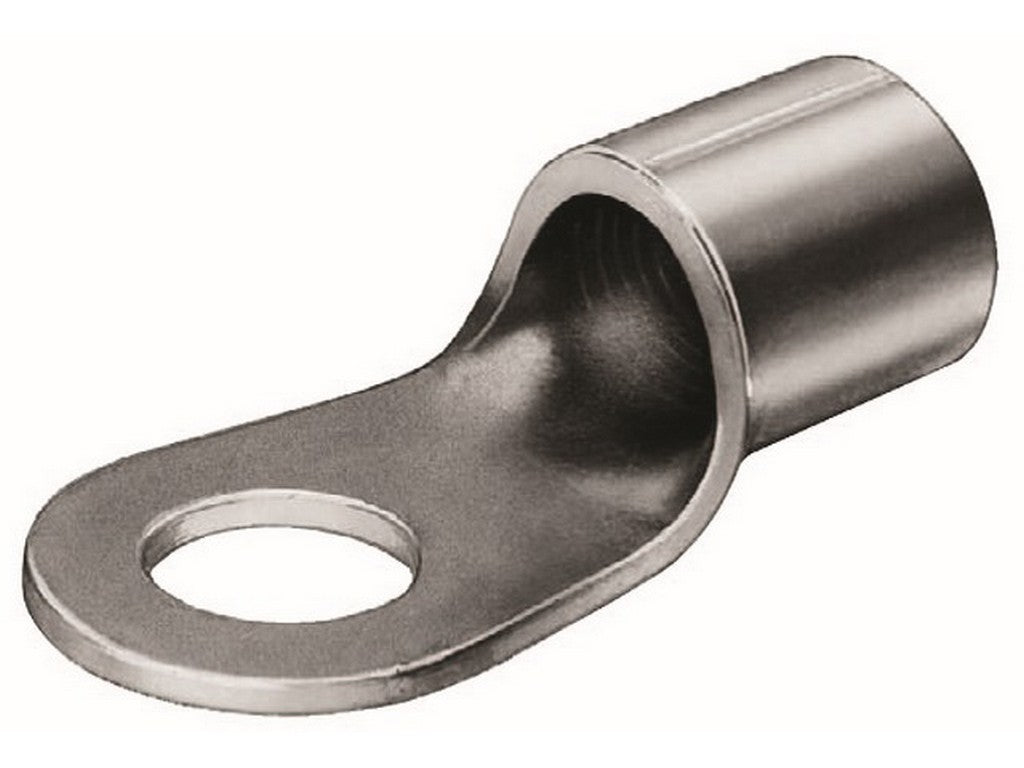

This Crimp Terminal ICQ356 is a crimped ring cable lug manufactured according to DIN 46234. The product is designed for stranded and fine-stranded conductors, and the crimping area is hard soldered. The type number ICQ356 corresponds to a nominal cross-section of 35 mm² and has a bolt thread size of M6. Specified dimensions include overall length (L) 26 mm and dimension A 12 mm. Information on weight and packaging size is provided for packs of 100 pcs.

Typical Applications

• Used for connecting stranded conductors.
• Used for connecting fine-stranded conductors.

Documentation

Reliable product information is sourced from the manufacturer's product list. Source: Intercable product page

Specifications

• Product: Crimp Terminal ICQ356.
• Manufacturer: WEITKOWITZ.
• Standard: DIN 46234.
• Intended conductor types: stranded and fine-stranded conductors.
• Crimping area: hard soldered.
• Nominal cross-section: 35 mm².
• Connection thread: M6.
• Overall length (L): 26 mm.
• Dimension A: 12 mm.
• Net weight per 100 pcs: 0.97 kg.
• Packing size: 100 pcs.

The content has been generated with the help of AI – we reserve the right for errors.
Contact HIN for further product information.
