Product Overview

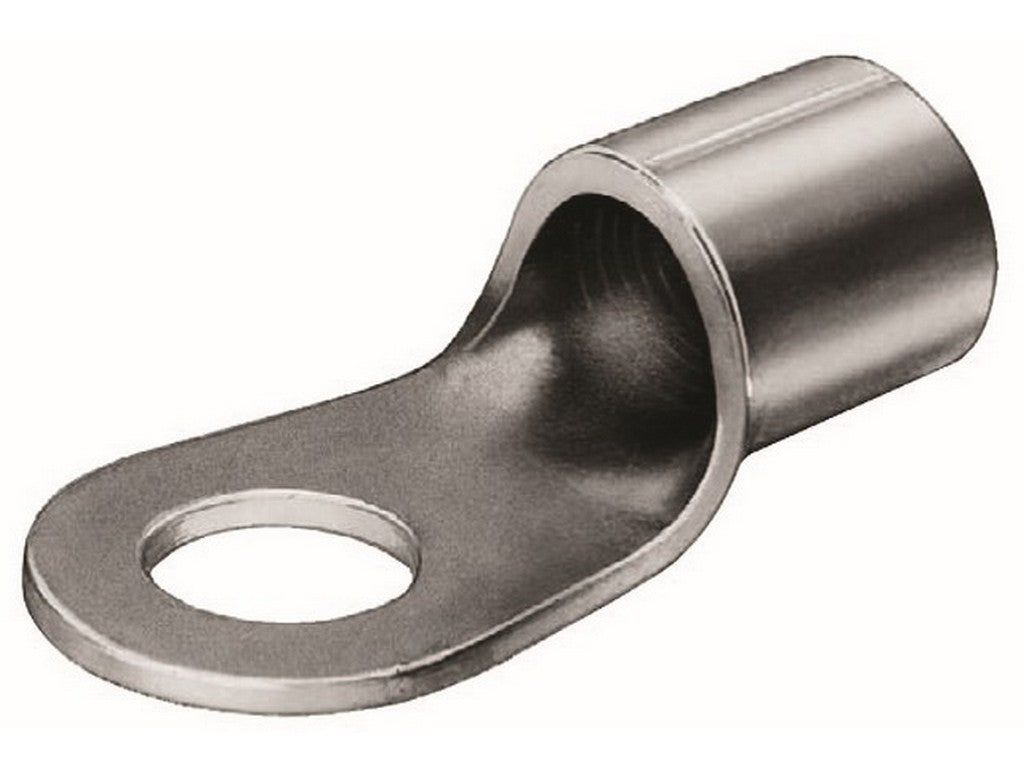

This crimp cable lug, in accordance with DIN 46234, is supplied by WEITKOWITZ, part number ICQ258. The product is designed for multi-stranded and fine-stranded conductors with a nominal cross-section of 25 mm². Soldering or nickel-plating information is not provided in the supplied data; however, the crimp area is stated as hard-soldered.Function and Construction
- Type: Crimp cable lug (Quetschkabelschuh) in accordance with DIN 46234.
- Nominal cross-section: 25 mm².
- Bolt connection: M8 (metric 8).
- Crimp area: hard-soldered as indicated by the manufacturer.
Typical Applications
The crimp cable lug (Quetschkabelschuh) ICQ258 is intended for the mechanical fastening of multi-stranded and fine-stranded conductors to an M8 bolt connection. This is directly evident from the manufacturer's product description and indicates conductor types and bolt size as the purposes for the connection.
Documentation
Technical details and further context can be found in the manufacturer's catalog/datasheet. See datasheet from the manufacturer
Specifications
- Manufacturer: WEITKOWITZ
- Part number: ICQ258
- Standard: DIN 46234 (stated as the applicable standard in the product description)
- Nominal cross-section: 25 mm²
- Bolt connection: M8 (metric 8)
- Dimensions (manufacturer-specified): d1 = 7 mm, D2 = 8 mm, d3 = 16 mm, L = 25 mm, A = 11 mm
- Crimp area: hard-soldered
- Packing quantity: 100 pcs. per pack
- Net weight per 100 pcs.: 0.76 kg
Sources
The product description and technical data are derived from the manufacturer's catalog/datasheet as indicated above.
