Product Description

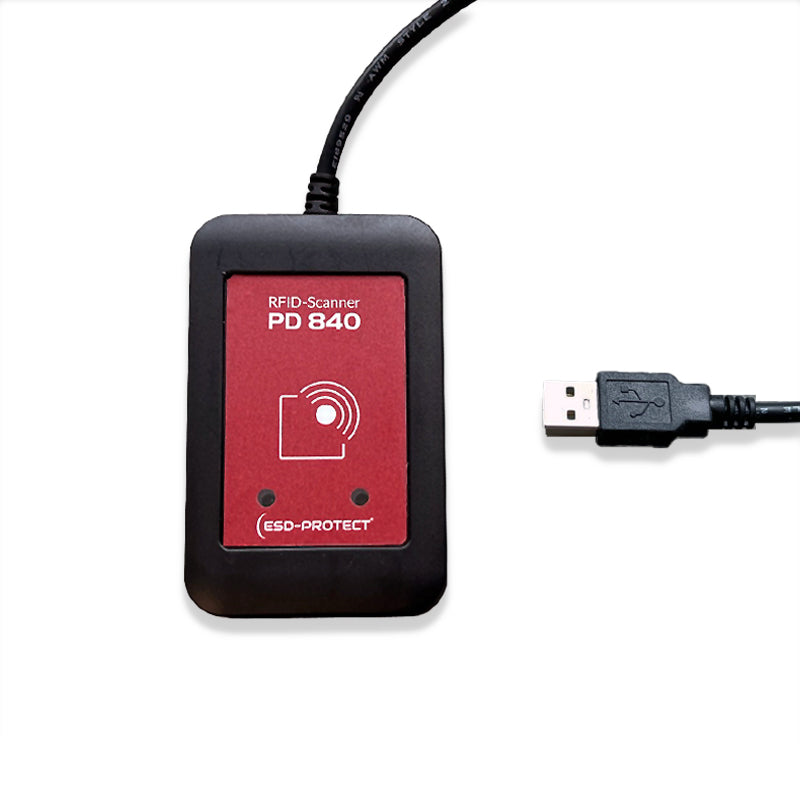

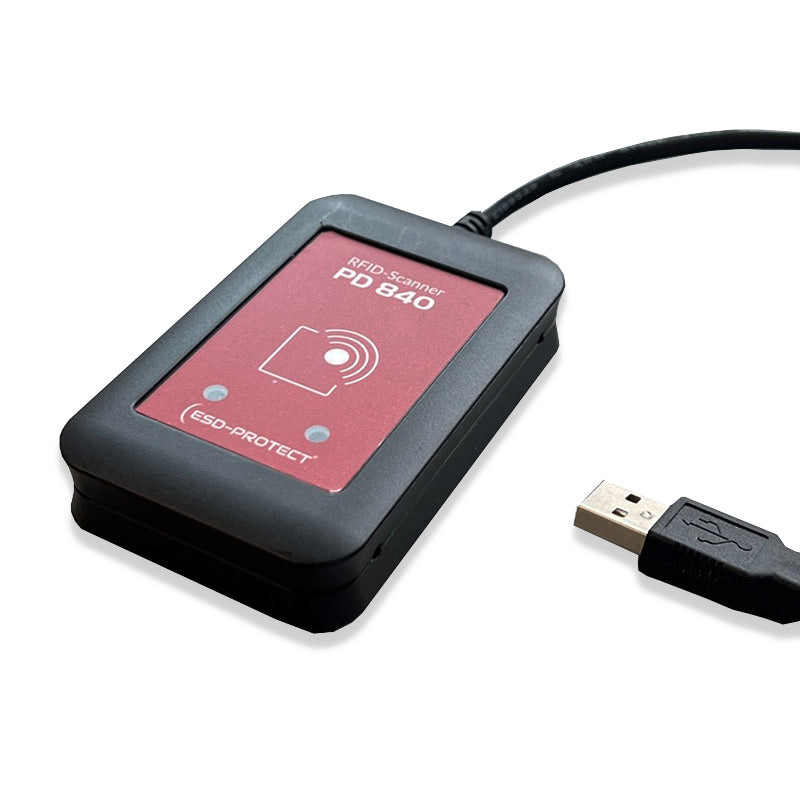

This RFID desktop/multi-reader from ESD-PRO, PD 840 (article number EP0301103), is designed for reading RFID transponder numbers (UID) and connects directly to a PC via USB. The device is powered via USB, so no separate power adapter is required. The PD 840 can deliver read UID values via the PC's keyboard buffer, enabling direct input into applications such as Excel or PC‑Master (examples mentioned in the manufacturer's text).Technical Description
- Product: PD 840 (article number EP0301103)
- Manufacturer: ESD-PRO / ESD-PROTECT (stated in manufacturer material)
- Interface: USB (connection to PC and power supply via USB)
- Frequencies: 125 kHz and 13.56 MHz
- Function: Reading RFID transponder numbers (UID) and delivering data via keyboard buffer
Supported tag types/protocols
- Hitag 1
- Hitag 2
- Mifare
- Legic
- Euchner
- EM4102
- EM4150
- ISO 14443A
- ISO 14443B
- ISO 15693
Documentation
Further details and manufacturer information can be found in the manufacturer's datasheet: View datasheet from manufacturer
Typical Applications
- Reading RFID transponder numbers (UID) for further processing in PC applications.
- Direct data entry into applications via keyboard buffer, for example in Excel or PC‑Master (as mentioned in the manufacturer's material).
- Connection to a PC via USB with power supply over USB, where no separate power supply is required.
Specifications
- Product Name: PD 840
- Article Number: EP0301103
- Adapter/Connection: USB (data and power over USB)
- Operating Frequencies: 125 kHz and 13.56 MHz
- Supported Tag Types: Hitag 1, Hitag 2, Mifare, Legic, Euchner, EM4102, EM4150, ISO 14443A, ISO 14443B, ISO 15693
Source: Manufacturer's product description and datasheet from ESD-PROTECT.
Content generated with AI – subject to errors.
Contact HIN for further product information.
