Product Overview

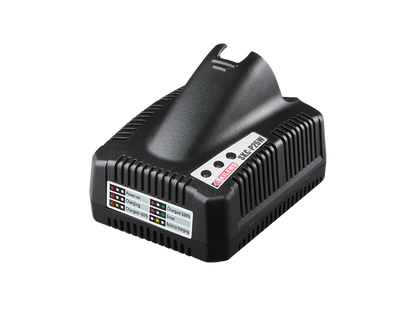

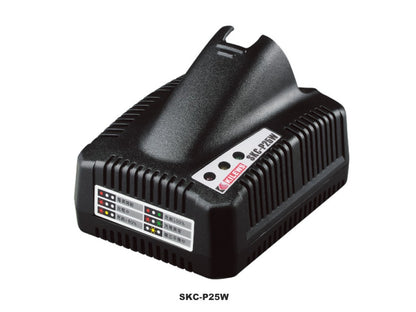

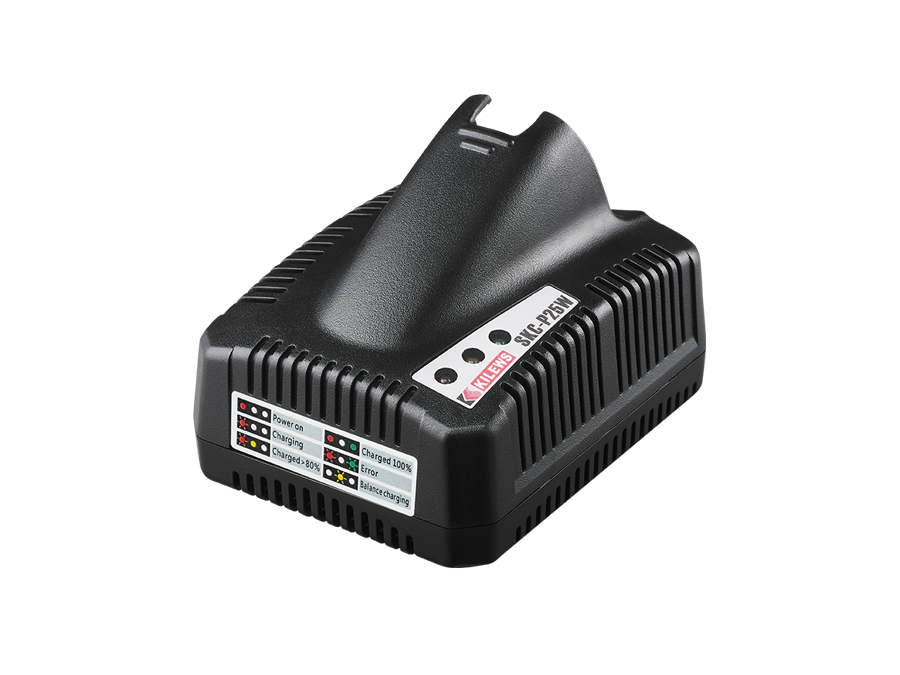

This charging station from KILEWS, model SKC-P25W, is designed for charging the KILEWS SKC-LB0730S lithium-ion battery. The SKC-P25W accepts 100–240 VAC input and delivers an 8.4 VDC, 3.0 A output. The unit includes battery identification and an audible buzzer, as well as CE and ETL markings, as stated in the manufacturer's operating manual.
Technical Specifications
- Battery type: Li-ion
- Applicable battery model: SKC-LB0730S
- Input voltage: 100–240 VAC
- Output voltage: 8.4 VDC
- Output current: 3.0 A
- Dimensions (W×L×H): 115 × 145 × 101.6 mm
- Weight: approx. 430.4 g
- Charging time: approx. 70 minutes for a 3000 mAh battery (stated as typical in the operating manual)
- Certifications: CE, ETL (listed in manufacturer documentation)
Protection Features
- Overcharge protection
- Overcurrent protection
- Short circuit protection (fuse implemented)
- Reverse current protection
- Battery ID recognition
- Temperature protection with multiple thresholds and warnings (described in the operating manual)
Documentation
Detailed information on operation, indication signals, and thermal protection limits can be found in the manufacturer's operating manual and datasheet. See datasheet from manufacturer
Typical Applications
Used for charging the KILEWS SKC-LB0730S lithium-ion battery as specified by the manufacturer. The unit handles battery identification and provides the specified charging power for the mentioned battery model.
Specifications
- Model: SKC-P25W
- Battery identification: Yes
- Input: 100–240 VAC
- Output: 8.4 VDC, 3.0 A
- Dimensions: 115 × 145 × 101.6 mm
- Weight: 430.4 g
- Battery type: Li-ion (SKC-LB0730S)
- Typical charging time: approx. 70 min for 3000 mAh
- Protection features: overcharge, overcurrent, short circuit, reverse current, ID recognition, temperature protection
- Certifications: CE, ETL
Source
Manufacturer's operating manual and datasheet (KILEWS): See datasheet from manufacturer
