STAUBLI 41.0010

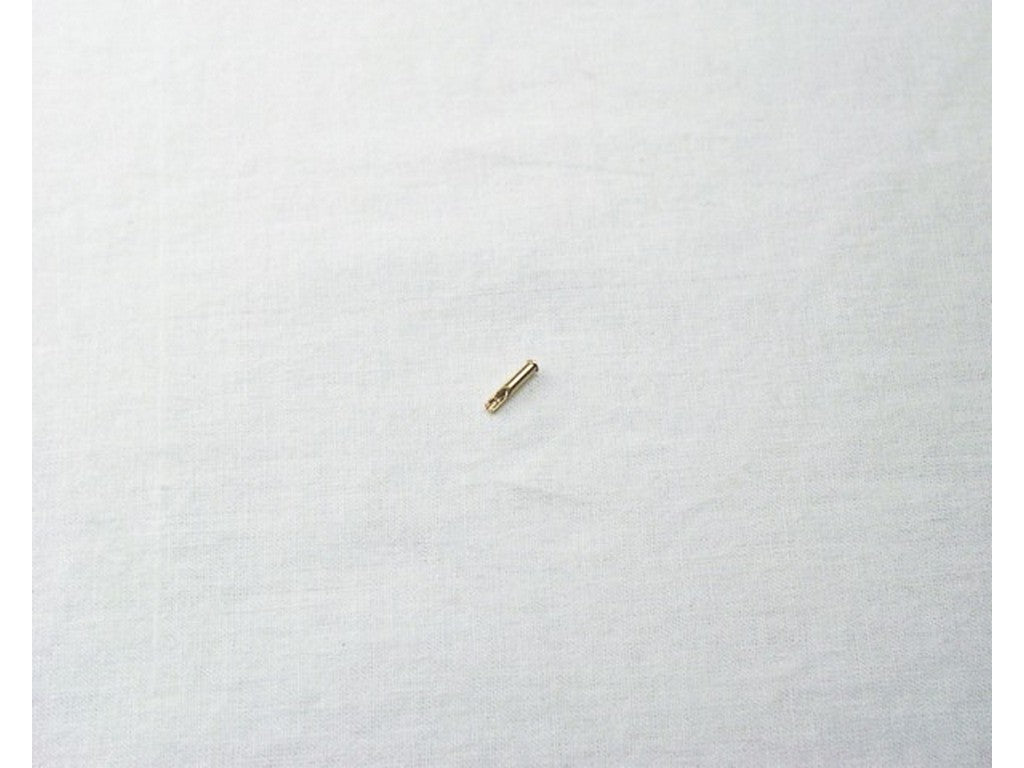

Stäubli 41.0010 is a press-fit socket, which is part of the Stäubli Miniline program and is referred to as LB1 in the manufacturer's CAD catalog. It is used in the construction of a plug connection, where the socket is pressed into an insulation part with the correct tool and is then ready for use.
In other words, it is a component for the part of the assembly where a precise and fixed placement in the front plate or insulation part is required. Stäubli's assembly instructions also state that the work must be carried out with the specified parts and tools, so that the technical execution adheres to the manufacturer's instructions.
For EB1, the instructions specify a drill hole of Ø 2.7 +0.05 mm in metal and plastic plates. At the same time, an assembly tool, MB1 with order no. 25.0030, is mentioned for the pressing itself. This is the type of detail that is important in practice, because a press-fit solution only works correctly when drilling, assembly, and tools match.
Stäubli also states that the MA102 instructions were issued in 06.2021 and cover press-in sockets EB1, EB2, EB2-A, and EB2-F.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 41.0010
- Designation in Stäubli Miniline CAD catalog: LB1
- CAD component: 10021087
- CAD formats: ipt, igs, sat, stp
- Associated assembly tool: MB1
- Assembly tool order no.: 25.0030
- Recommended drill hole for EB1: Ø 2.7 +0.05 mm
- MA102 assembly instructions: 06.2021
The content has been generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
