Adjustable Cable Lockout — Master Lock S806
The Master Lock S806 is an adjustable cable lockout designed for lockout/tagout and valve lockout. The product comes with a 6 ft (1.8 m) pull-tight cable and features an integrated safety lockout hasp. The description below compiles the verified technical details and typical usage of the device.Function and Construction
- Cable: 5/32 in (4 mm) diameter, multi-stranded steel with clear plastic coating (PVC-free).
- Body: Lightweight thermoplastic (Zenex™) designed to resist chemicals and perform under extreme conditions.
- Adjustment: Pull-tight, patented mechanism allowing for shortening and securing the cable to remove slack.
- Integrated: Safety lockout hasp is built into the unit for grouping and multi-point lockouts.
Usage

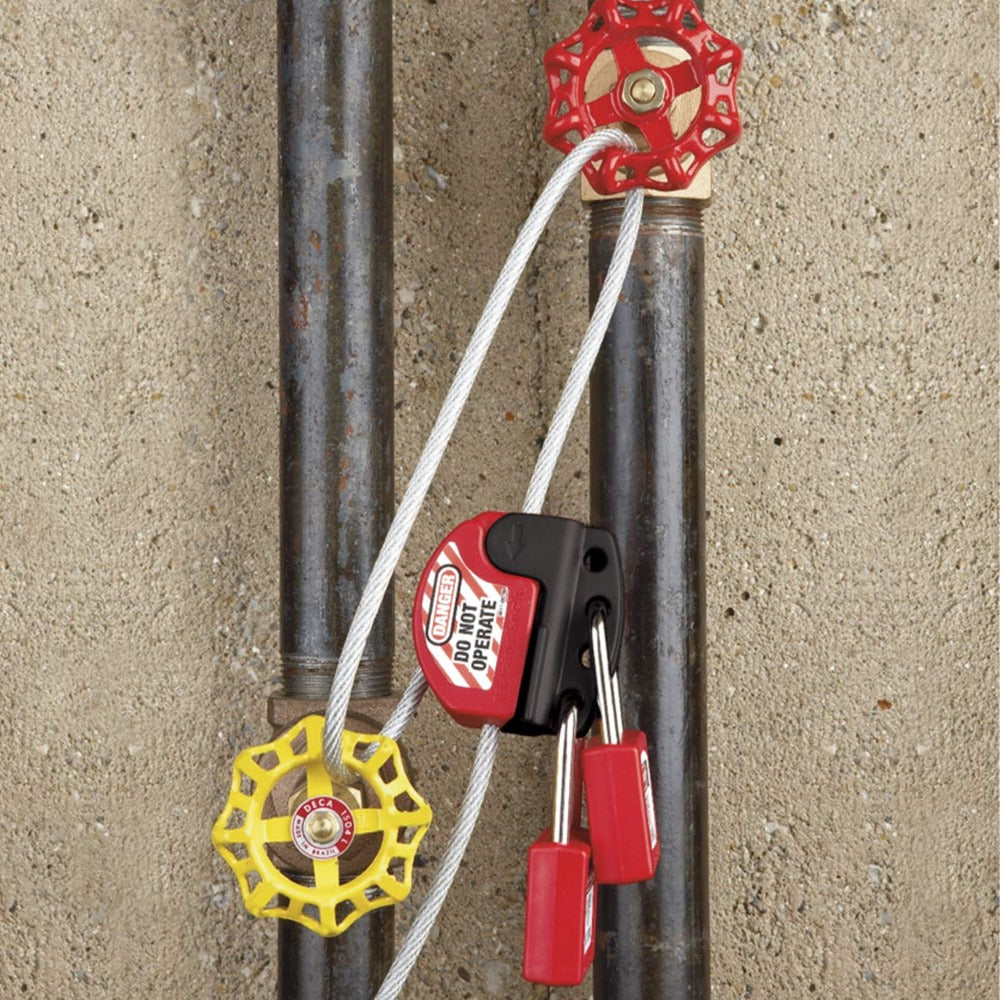

The Master Lock S806 is used by threading the cable end through the points to be locked out, then threading the cable back through the lockout body. The cable is pulled tight to remove slack and secured with the patented pull-tight feature, keeping the points separated as needed.
Typical Applications
The product is specified for lockout/tagout and valve lockout applications, as well as group and multi-point lockouts, as indicated by the manufacturer.
Specifications
- Product Name: Master Lock S806
- Manufacturer: MASTERLOCK
- Cable Length: 6 ft (1.8 m).
- Cable Fabric: 5/32 in (4 mm) diameter, multi-stranded steel with clear plastic coating (PVC-free).
- Design: Pull-tight, patented adjustment mechanism.
- Body: Zenex™ thermoplastic.
- Includes: High-visibility, reusable write-on labels in English, Spanish, and French.
- Available Lengths: Also available in 7 to 50 ft (2.13 m to 15.24 m).
- Color: Grey.
- Master Carton Qty: 6.
