Miniature circuit breaker lockout device

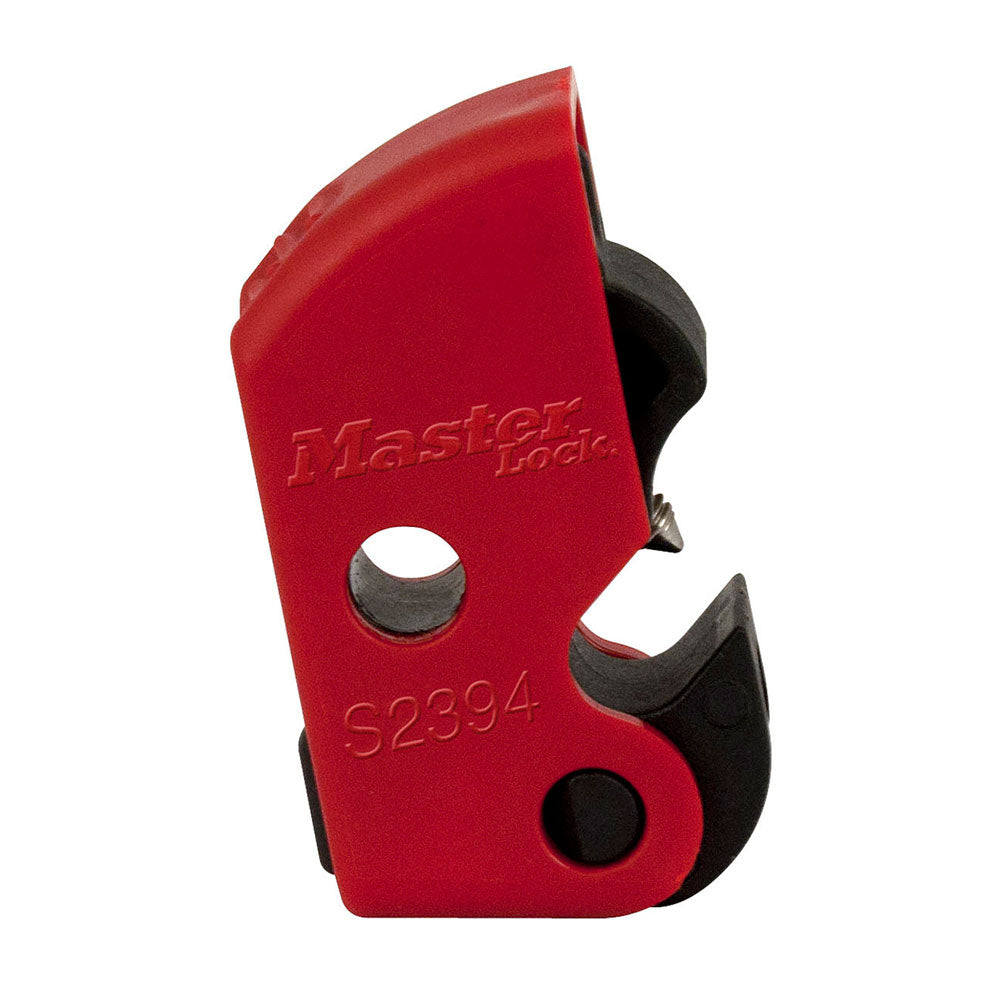

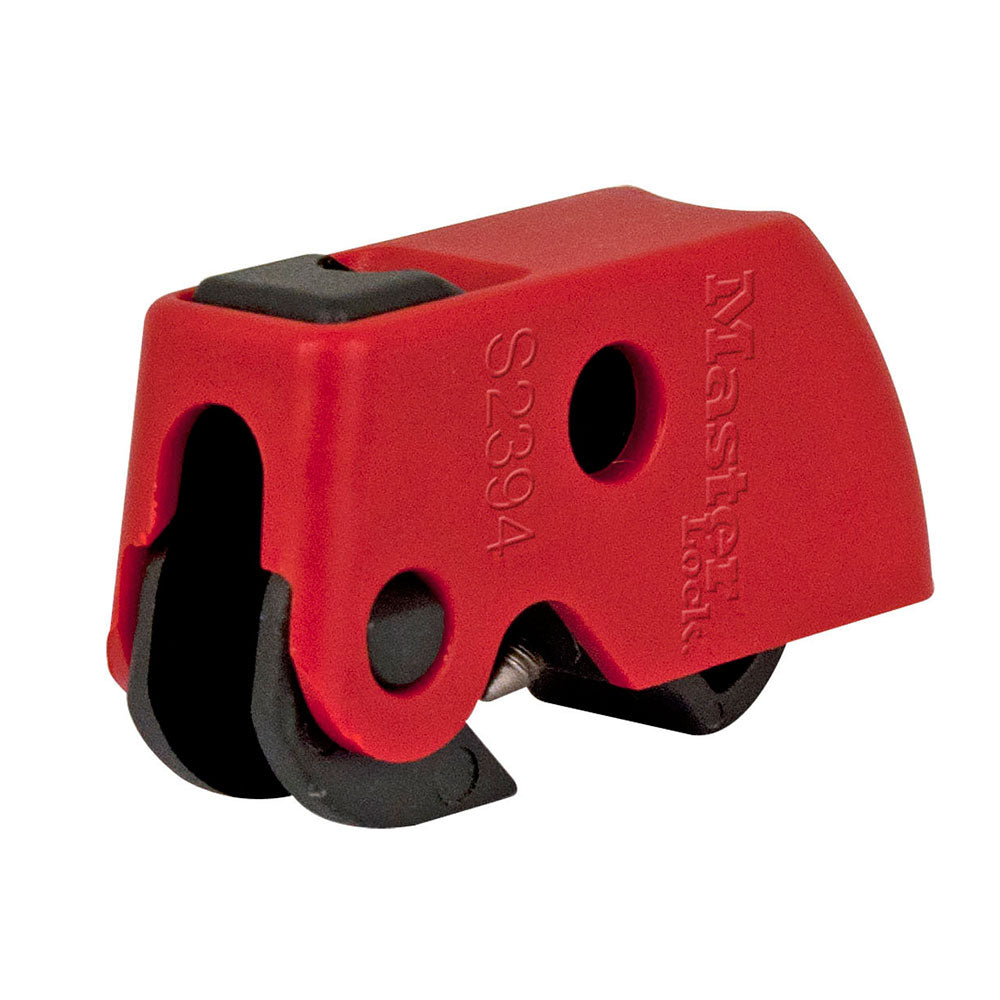

The Master Lock S2394 is a universal lockout device for miniature circuit breakers with ISO/DIN pin-out. The device is designed to secure the circuit breaker in the off position and prevent unauthorized re-energization using a mechanical locking mechanism.Function and construction

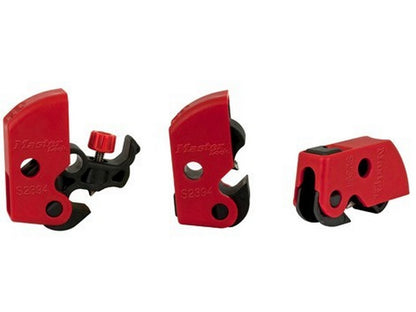

The S2394 is installed without tools using a thumb-turn dial screw, which is tightened manually. Once the lockout device is locked, the dial is inaccessible to prevent removal. The design allows a safety padlock to be applied horizontally or vertically, and multiple devices can be mounted side-by-side on adjacent circuit breakers.
- Key feature: universal fit for miniature ISO/DIN pin-out circuit breakers.
- Tool-free attachment via thumb-turn dial screw.
- Dial is blocked when locked to prevent removal.
- Option for horizontal or vertical application of safety padlock.
- Can be mounted side-by-side on adjacent circuit breakers.
Material and compatibility
The body is made of a chemical-resistant thermoplastic material. The S2394 is compatible with Master Lock and American Lock safety padlocks, as well as lockout hasps, as specified by the manufacturer.
Specifications
- Model: S2394.
- Manufacturer: Master Lock.
- Product: Universal miniature circuit breaker lockout device (ISO/DIN pin-out).
- Attachment: Thumb-turn dial screw, tool-free.
- Dial inaccessible when locked.
- Safety padlock can be applied horizontally or vertically; can be mounted side-by-side on adjacent circuit breakers.
- Construction: Chemical-resistant thermoplastic.
- Compatibility: Master Lock and American Lock safety padlocks and lockout hasps.
