Product Overview

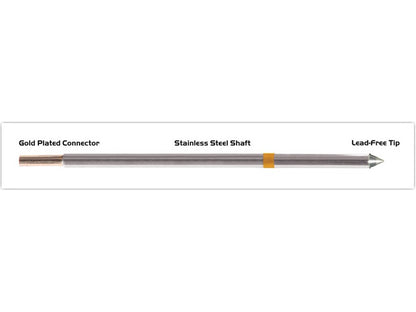

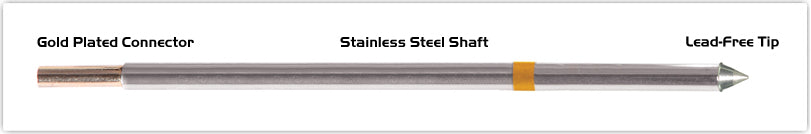

The Thermaltronics M7C301 is a conical soldering tip designed as a 700-series cartridge for use with specified Thermaltronics systems. The product is identified as a conical tip with a tip width of 0.50 mm (0.02") and a tip length of 5.00 mm (0.20"). The Thermaltronics M7C301 is stated to be RoHS compliant and lead-free.Technical Description
The M7C301 is a 700-type cartridge/tip based on Thermaltronics M-series Curie Heat Technology, which, according to the manufacturer's text, is described as a solution that responds to the heat demands at the solder joint, providing heat transfer and durability. The specified operating/idle temperature for this series is 350°C to 398°C. The manufacturer also states that the components are RoHS compliant and lead-free.Documentation
Further technical data and manufacturer information can be found in the official datasheet. See datasheet from the manufacturerTypical Applications
The M7C301 is specified for use with the following Thermaltronics systems and is thus used as a replaceable tip for these devices:- TMT-9000S-1
- TMT-9000S-2
- MX-500
- MX-5000
- MX-5200
Specifications
- Product Name: Thermaltronics M7C301
- Tip Style: Conical

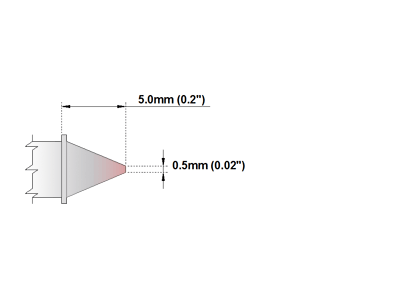

- Tip Width: 0.50 mm (0.02")
- Tip Length: 5.00 mm (0.20")
- Series/Type: 700 Type Cartridge
- Operating/Idle Temperature: 350°C - 398°C
- RoHS Compliant: Yes (Lead-Free)
- Equivalent to: STTC-116
- Stated Compatibility: TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, MX-5200
- Note: The manufacturer typically states idle temperature variation around +/-1.1°C for tip cartridges within a temperature series (manufacturer's text).
