Product Overview

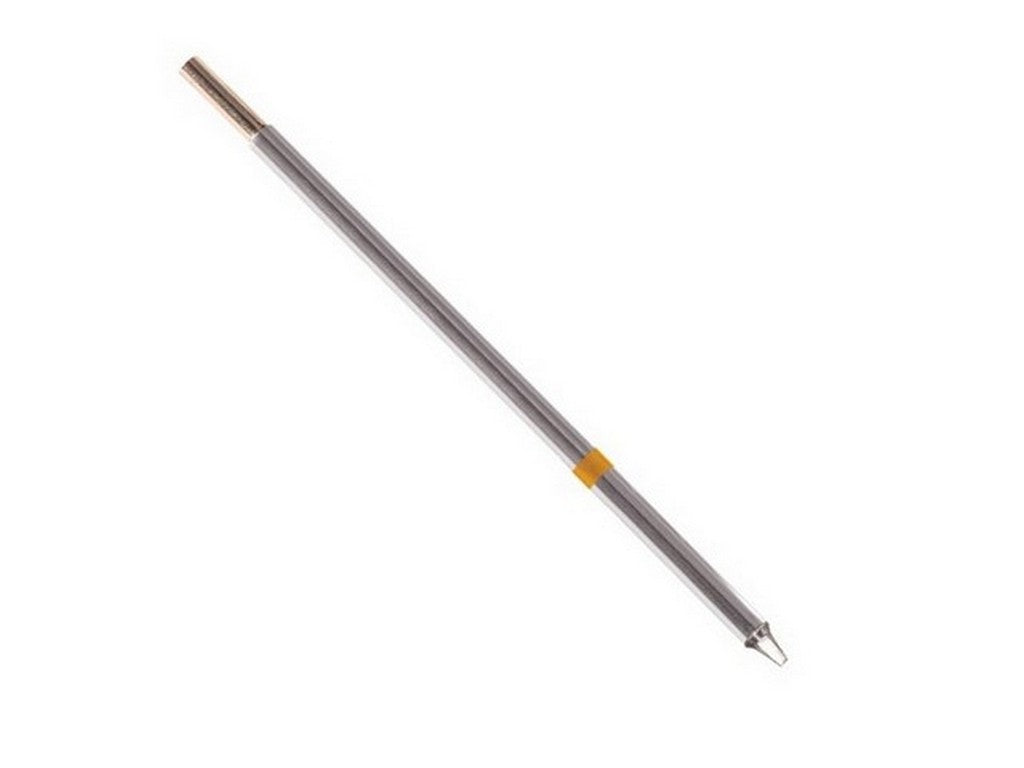

This article describes a 700 series soldering cartridge from Thermaltronics: Thermaltronics M7CP202. The cartridge is a chisel type with a 30° tip and a stated tip width of 1.50 mm (0.06") and a tip length of 6.40 mm (0.25"). Thermaltronics states that the M7CP202 is RoHS compliant and lead-free. The product is listed as equivalent to Metcal STTC-138P. The M7CPCP202 uses the Curie Heat Technology described in the documentation, and Thermaltronics typically states an idle temperature variation of approximately ±1.1°C between tip geometries within a given temperature series. The stated temperature range for the 700-type is 350°C–398°C.Documentation
View datasheet from manufacturerTypical applications
According to the manufacturer, the product is designed for standard soldering tasks. Thermaltronics describes the 700 series as intended for standard soldering applications, which is the direct application specified in the manufacturer's documentation.Specifications
- Product name: Thermaltronics M7CP202
- Series/type: 700 Type Cartridge
- Tip style: Chisel 30°
- Tip width: 1.50 mm (0.06")
- Tip length: 6.40 mm (0.25")
- Temperature range (700 type): 350°C - 398°C
- Material/composition: All components RoHS compliant and Lead-Free
- RoHS: Yes (Lead Free)
- ESD: ESD FREE (stated in manufacturer data)
- Technology: Curie Heat Technology (stated by manufacturer)
- Typical idle temperature variation: ~±1.1°C (stated by manufacturer)
- Equivalent to: Metcal STTC-138P
- Compatible with: TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, MX-5200
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
