Product Overview

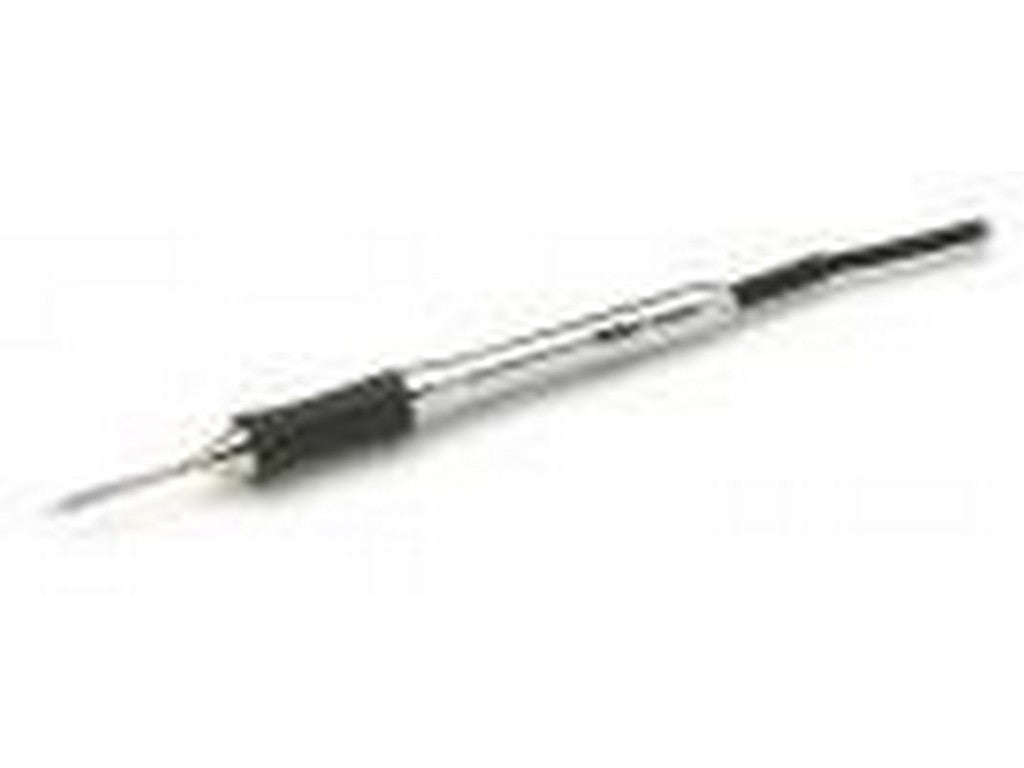

The WMRP (Item No. T0052917199N) is a micro soldering iron (handpiece) from WELLER designed for Active‑Tip Heating Technology. The handpiece is supplied without tips and is specified for 40 W, 12 V. The WMRP is intended for working with very small components and miniature tasks under a microscope and is compatible with selected power and rework units.Features and Design
- Active‑Tip (cartridge) system: RT cartridges allow for quick tip replacement, even while the soldering iron is hot.
- Short heat-up time: datasheet indicates approximately 3 seconds from 50–350 °C.
- ESD safe: the tool is listed as ESD Safe.
- Standby function and quick reaction time are mentioned in the manufacturer's specifications.
Typical Applications
The WMRP is specified for use with very small components and miniature work under a microscope, as stated by the manufacturer. The product text also indicates compatibility with rework station WR 3M and soldering station WT 2M, which defines the verifiable application scenarios to micro-rework and precision soldering under magnification.Compatibility and Accessories
- Recommended power units: WT2M, WD1M, WD2M, WR3M, and WD3M.
- Integrated direct fume extraction option: item number T0052918599.
- Safety holder: WSR205 (listed as safety rest).
- Tip range: RTM (RT-soldering tips).
For detailed technical information and full manufacturer data, please refer to the Weller datasheet.
See datasheet from manufacturerSpecifications
- Product name: WMRP (Item No: T0052917199N)
- Power: 40 W
- Voltage: 12 V
- Approx. heat-up time (50–350 °C): 3 seconds
- ESD Safe: Yes
- Integrated direct fume extraction: T0052918599
- Recommended supply units: WT2M, WD1M, WD2M, WR3M, WD3M
- Safety rest: WSR205
- Tip range: RTM
- Temperature range (datasheet specifications): 65 - 454 °C (depends on tool); 100 - 450 °C (other specified range)
- Product family: WT Soldering Irons
