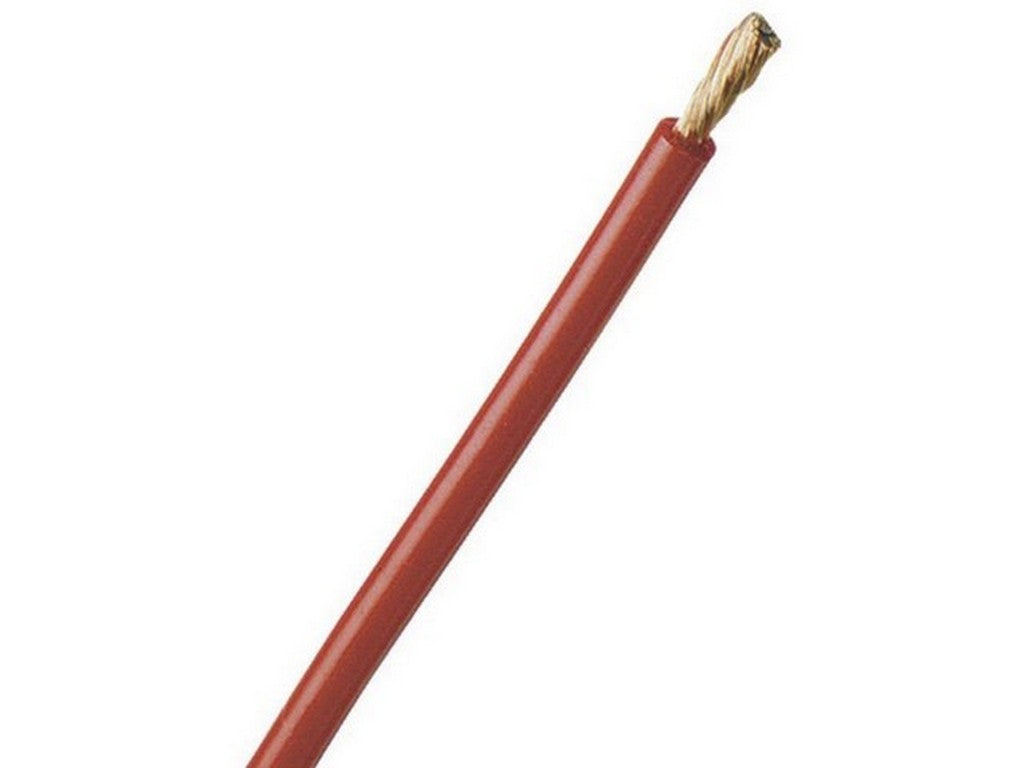

STAUBLI FLEXI-S 10
The STAUBLI FLEXI-S 10 is a highly flexible 10 mm² cable with reinforced insulation. It is designed for applications where a conductor is required that can withstand a high electrical load while being easy to work with during installation.
The cable is rated for AC 1000 V and DC 1500 V, with a rated current of 73 A. This makes it relevant for applications involving higher voltages and currents, and where there are demands for a robust and stable cable. The insulation is made of PVC, and the temperature range is from -10 °C to +70 °C.
Its construction is very fine-stranded with 2556 x 0.07, which is one of the factors contributing to its high flexibility. The conductor diameter is 4.8 mm, and the overall cable diameter is 7.0 mm. These are useful measurements when the cable needs to fit into a confined space or in a solution where cable routing needs to be controlled.
The STAUBLI FLEXI-S 10 is approved according to UR, CE, UKCA, and EAC.
Specifications
- Manufacturer: STAUBLI
- MPN: 60.7017-99922
- Type: FLEXI-S 10
- Conductor cross-section: 10 mm²
- Reinforced insulation
- Insulation material: PVC
- Rated voltage: AC 1000 V / DC 1500 V
- Rated current: 73 A
- Temperature range: -10 °C to +70 °C
- Strand design: 2556 x 0.07
- Conductor diameter: 4.8 mm
- Cable diameter: 7.0 mm
- Approvals: UR, CE, UKCA, EAC
See datasheet from the manufacturer
