Product Overview

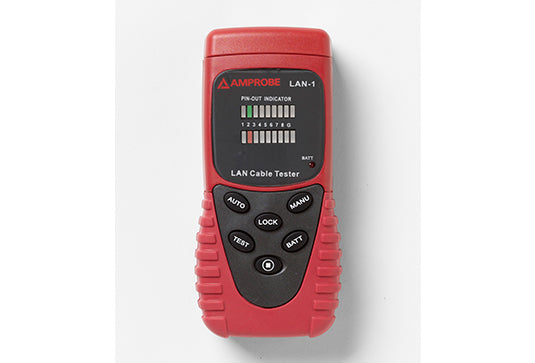

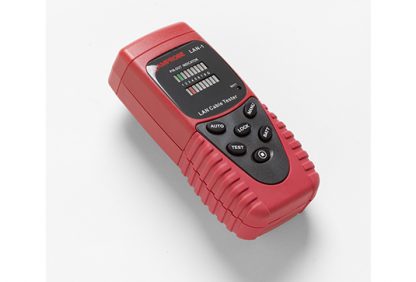

The Amprobe LAN-1 handheld LAN cable tester is designed for verifying the pin configuration and continuity of network cables. The Amprobe LAN-1 identifies open circuits, short circuits, and miswired cables, displaying results via a go/no-go LED display.Features
- Tests cable types: 10/100 base-T, 10 base-2, RJ45, AT&T 258A, EIA/TIA 568A/568B, and Token Ring.
- Go/no-go LED display with 18 LEDs (9 red and 9 green) on the main unit and 9 LEDs on the remote module.
- Ability to step through pin-outs or automatically pulse through pin configurations.

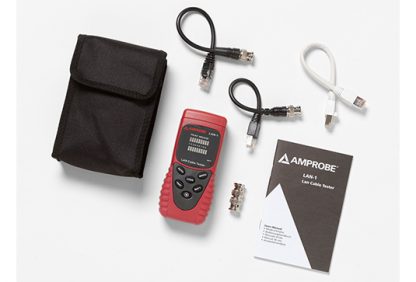

- Includes remote terminator and associated cables: RJ45–RJ45, RJ45–BNC, and BNC–BNC.
- Battery-powered (standard 9-volt) and comes with batteries installed.
- Supports continuity testing for more than 300 meters.
Typical Applications
- Detecting open circuits, short circuits, or miswires in individual cables.
- Testing pin configurations for listed cable types (e.g., 10/100 base-T, RJ45, EIA/TIA 568A/568B).

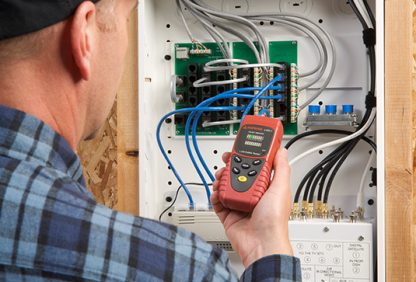

- Testing installed cables at wall outlets or patch panels using the remote terminator.
- Performing loopback tests or remote tests using the included remote module.
Indication and Alarm Signals
- Two sets of LED indicators (source and test) provide visual feedback for pin states.
- Built-in buzzer provides an audible alarm for cable fault conditions.
Source and additional product information can be found on the manufacturer's product page.
Specifications
- Product: Amprobe LAN-1.
- Manufacturer: AMPROBE.
- Manufacturer Part Number: 3052401.
- Device Type: Handheld LAN Cable Tester.
- Tested Cable Types: 10/100 base-T, 10 base-2, RJ45, AT&T 258A, EIA/TIA 568A/568B, Token Ring.
- Display: Go/no-go LED (18 LEDs: 9 red, 9 green) + 9 LEDs on remote module.
- Accessories: Remote terminator; cables: RJ45–RJ45, RJ45–BNC, BNC–BNC.
- Power Supply: Standard 9-volt battery (supplied installed).
- Continuity Test Range: > 300 meters.
- Connection Types: RJ45, BNC.
- Functions: Step-through or automatic pulsing of pin-outs; loopback/remote test; buzzer for faults.
