Product Overview
DERAY-IAKT is a thin-walled, adhesive-lined polyolefin heat shrink tubing designed for moisture-resistant sealing and mechanical strain relief. The product is supplied in 3:1 and 4:1 shrink ratios and is used for insulating and protecting splices, connectors, and cable terminals.
Features
- Adhesive-lined inner layer that bonds to plastic, rubber, steel, polyethylene, and other materials
- Minimum shrink temperature: 95°C
- Continuous operating temperature for outer jacket: -55°C to 110°C
- Available in black and clear

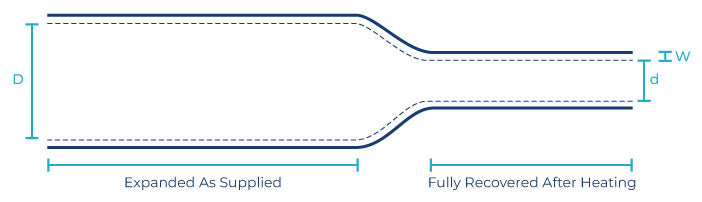

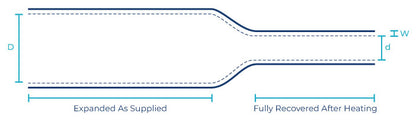

DERAY-IAKT is made from modified polyolefin and its mechanical and electrical properties, such as tensile strength, elongation, and dielectric strength, are specified in the product data. When selecting dimensions, it is recommended to choose a size that, after shrinking, fits snugly around the component to be covered, so that the adhesive and wall thickness provide the desired sealing and strain relief.
Typical Applications

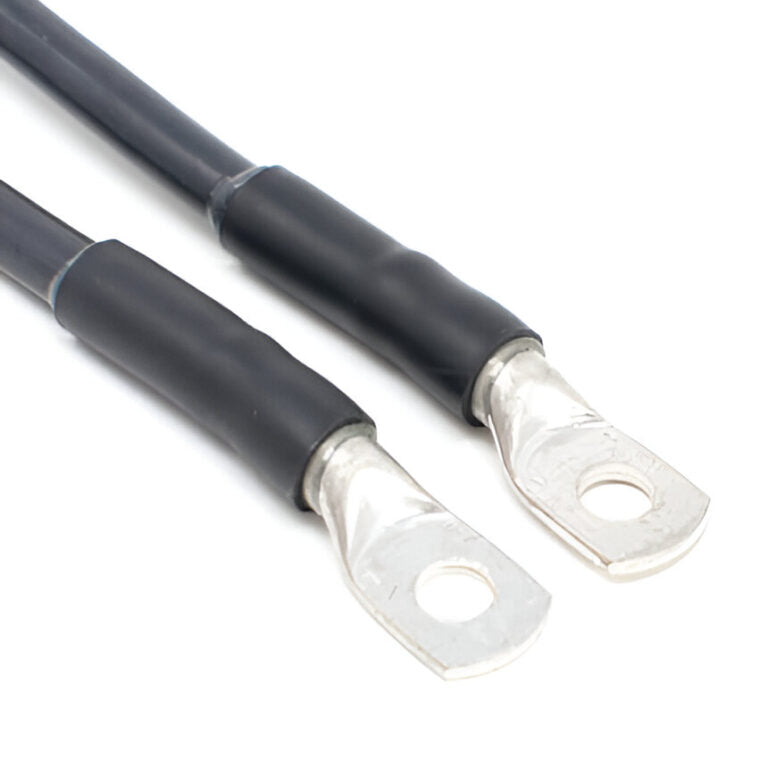

- Environmental sealing and strain relief of connectors and terminals
- Moisture sealing and electrical insulation of simple in-line splices
- Abrasion protection for hoses and pipes
- Repair of damaged cable installations and wire harnesses
Documentation
See datasheet from the manufacturer
Specifications
- Product name: DERAY-IAKT
- Material: Modified polyolefin
- Shrink ratio: 3:1 and 4:1
- Minimum shrink temperature: 95°C
- Continuous operating temperature (outer jacket): -55°C to 110°C
- Example size (3:1): 6.0 mm expanded / 2.0 mm recovered, supplied in 1.22 m lengths
- Colors: black (BK) and clear (CL)
- Dielectric strength: 22 kV/mm
The content has been generated using AI – we reserve the right to make errors.
Contact HIN for further information about the product.
