Heat shrink tube 6.4mm clear (2:1) 1.22m

Product Overview

DERAY®-KY 175 is a semi-rigid, thin-walled Kynar® (PVDF) heat shrink tubing from DSG-Canusa. The product has a shrink ratio of 2:1 and a minimum shrink temperature of 175°C. The continuous operating temperature is specified at -55°C to 175°C. The 6.4 mm expanded size recovers to 3.2 mm and is supplied in 1.22 m lengths.

Material and Properties

• Material: modified PVDF (Kynar®)
• Semi-rigid and thin-walled
• High flame retardant properties
• Resistant to abrasion and cut-through
• Very good chemical and solvent resistance
• Shrink ratio: 2:1
• Minimum shrink temperature: 175°C
• Continuous operating temperature: -55°C to 175°C

Typical Applications

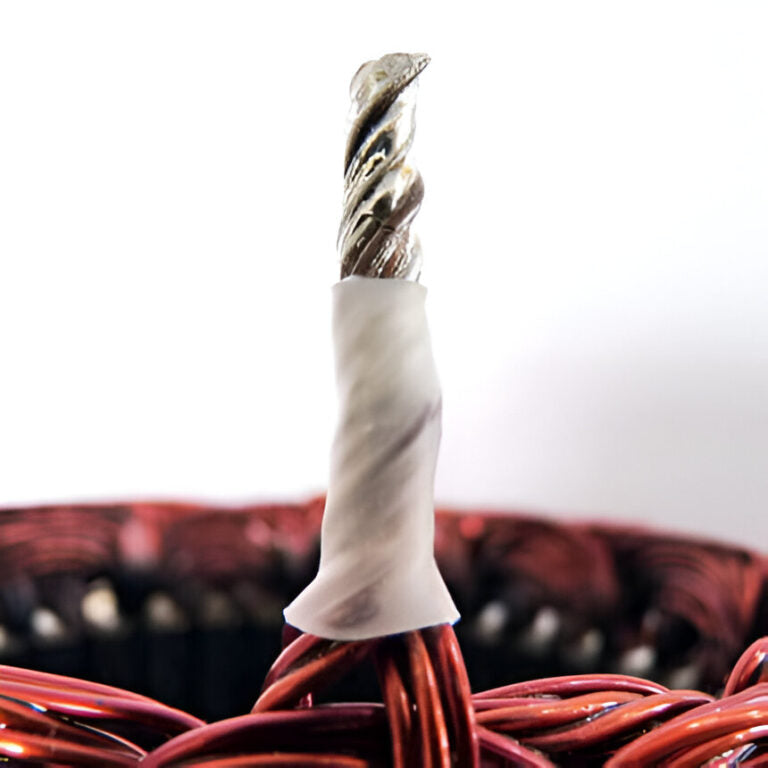

• Strain relief and insulation of high-temperature wiring
• Applications where high chemical and abrasion resistance are required
• Areas where excellent electrical insulation is necessary

Technical Reference

See datasheet from the manufacturer

Specifications

• Product name: DERAY®-KY 175
• Manufacturer: DSG-Canusa
• Material: modified PVDF (Kynar®)
• Shrink ratio: 2:1
• Minimum shrink temperature: 175°C
• Continuous operating temperature: -55°C to 175°C
• Expanded size (example): 6.4 mm → recovers to 3.2 mm
• Total wall thickness for 6.4 mm size: 0.30 mm (nominal)
• Supplied in lengths of 1.22 m (48 in)
• Approvals: UL 224 (125°C VW-1, UL file # E107857); CSA 22.2 No 198.1 (125°C, CSA file # 065789_0_000)
• Standard color: Clear (CL) (listed as an option in ordering information)
• Manufacturer's part number: 4500064032

The content is generated using AI – we reserve the right for errors.
Contact HIN for further product information.
