Product Overview

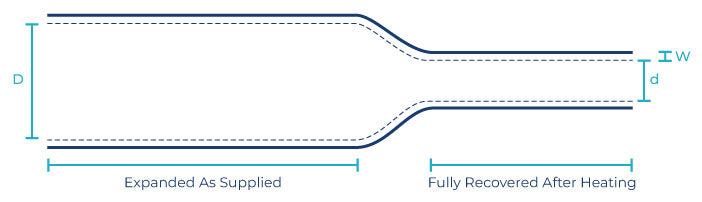

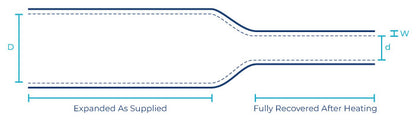

DERAY-LSB is a thin-walled, cross-linked polyolefin heat shrink tubing from DSG-CANUSA. The product is halogen-free and designed to shrink with a 2:1 ratio. DERAY-LSB is available in several dimensions; for example, order no. 0125 has an expanded internal diameter of 3.2 mm, which reduces to 1.6 mm after shrinking.Material and Properties
Deray-LSB is made of modified polyethylene (PE), free of halogens, lead, and cadmium. Key technical parameters specified by the manufacturer include a minimum shrink/activation temperature of 70°C and a continuous operating temperature range from -45°C to 125°C. The product has a matte surface and a specified nominal wall thickness for individual sizes.Installation and Handling
The manufacturer states that this material has a low shrink temperature, making it suitable for protecting heat-sensitive components. When selecting a dimension, it is recommended to choose a size that, after shrinking, fits tightly around the object to be covered; if the shrinking is restricted, the actual wall thickness will be less than specified.Typical Applications

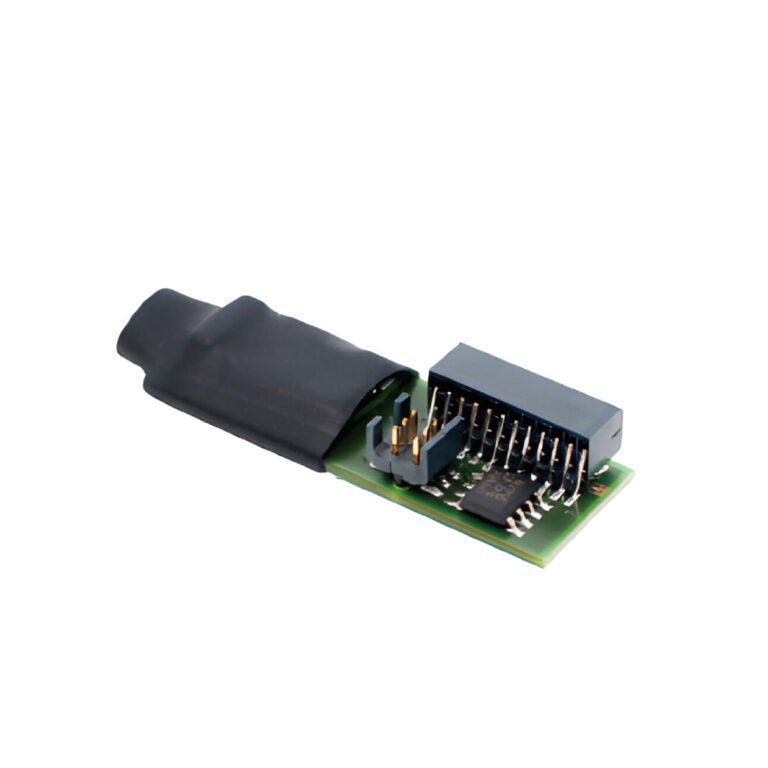

- Protection of heat-sensitive devices (as specified by the manufacturer)
- Insulation of electrical terminations (as specified by the manufacturer)
- Provides mechanical protection and rapid recovery in high-volume production (as specified by the manufacturer)
See datasheet from the manufacturer
Specifications
- Product Name: DERAY-LSB (DSG-CANUSA)
- Material: PE, modified, free of halogen, lead, and cadmium
- Shrink Ratio: 2:1
- Minimum Shrink/Activation Temperature: 70°C
- Continuous Operating Temperature: -45°C to 125°C
- Example, order no. 0125: expanded ID 3.2 mm → shrunk ID 1.6 mm; nominal wall thickness 0.50 mm; supplied on 300 m rolls
- Color Option Specified: Black (BK)
The content has been generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
