Thin-wall heat shrink tubing: DERAY-I-19,0-50-BK

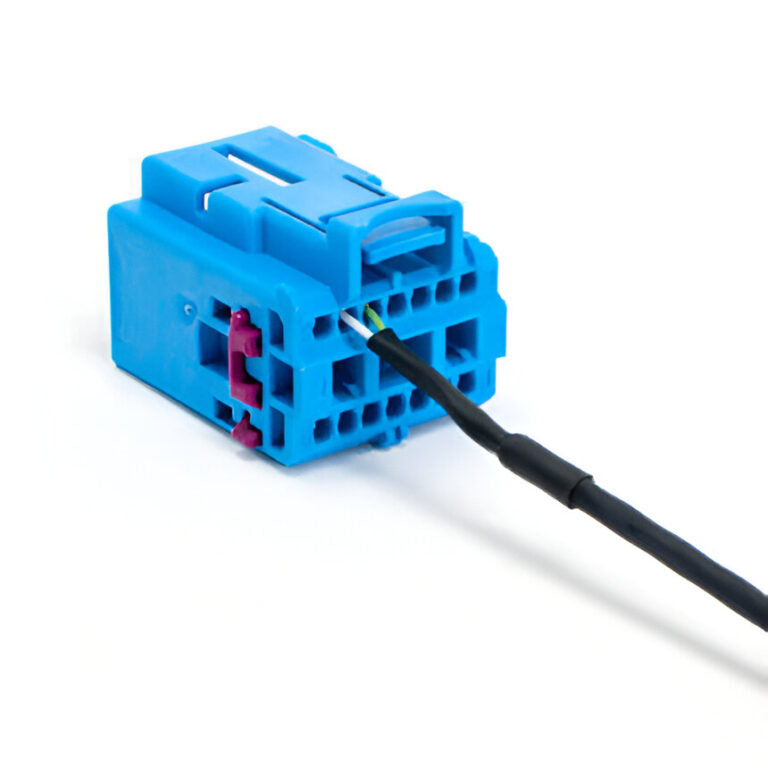

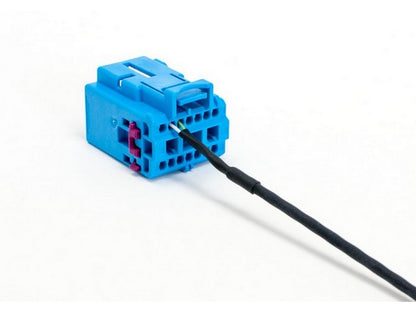

DERAY-I-19,0-50-BK is a thin-walled, cross-linked polyolefin heat shrink tubing from DSG-CANUSA designed for shrinking around cable and wire splices. The product name indicates order code 0750 with an expanded inner diameter of 19.0 mm supplied on a spool in lengths of 50 m and the color Black (BK).
What the product does
The tubing shrinks with a 2:1 ratio and reduces its diameter when heated to at least 90°C, providing insulation and mechanical protection for wire splices. The material is modified polyethylene (PE), cross-linked, and described as flexible with good resistance to common fluids and solvents, as well as good electrical and mechanical properties.
Features
- Shrink ratio: 2:1
- Minimum shrink temperature: 90°C
- Continuous operating temperature: -55°C to 135°C
- Material: cross-linked polyolefin / modified PE
- Supplied in black (BK) on a spool
Typical applications
- Electrical insulation of wire splices and terminals
- Protection against chemicals (resistance to common fluids and solvents)
- Strain relief of wire terminations
- Cable marking and bundling of electrical or mechanical components
- Protection against abrasion and fluids
Documentation
See datasheet from the manufacturer
Specifications
- Product: DERAY-I-19,0-50-BK

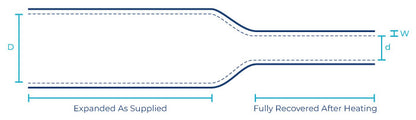

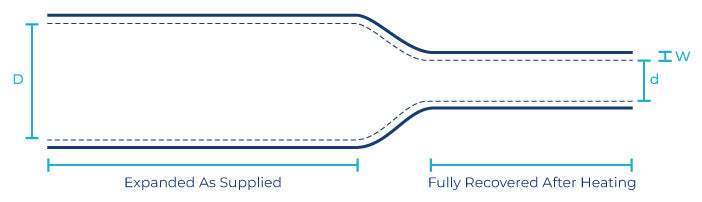

- Order code: 0750 (expanded inner diameter: 19.0 mm)
- Recovered inner diameter: 9.5 mm
- Total wall thickness (nom.): 0.80 mm
- Shrink ratio: 2:1
- Minimum shrink temperature: 90°C
- Continuous operating temperature: -55°C to 135°C
- Material: cross-linked polyolefin / modified PE
- Delivery unit: spool 50 m (option for mini-spool 30 m and segments of 1.22 m)
- Color: Black (BK)
The content is AI-generated – we reserve the right for errors.
Contact HIN for further information about the product.
