Product Overview
DERAY4-Handybox HAN-190 be is a thin-walled heat shrinkable tubing supplied on a small roll in a dispenser box. The product is intended for shrinking and electrical insulation, and is characterized by an expanded inner diameter of 19.0 mm and a fully shrunk inner diameter of 9.5 mm.Technical characteristics and application
As DERAY4-Handybox HAN-190 be is constructed as a thin-walled heat shrinkable tubing, it has a nominal wall thickness of 0.80 mm and a shrink ratio of 2:1. The product's minimum shrink temperature is 110 °C, and its continuous operating temperature range is specified from -55 °C to 135 °C. The material is modified polyethylene. Deray-Handybox is supplied in practical mini-boxes with 4 m of tubing per unit (HAN-190). Technical data in the datasheet shows, among other things, good mechanical and electrical properties relevant for insulation and mechanical bracing, including specified dielectric strength.Typical applications
- Electrical repair and maintenance
- Strain relief
- Electrical insulation
Documentation
See datasheet from manufacturerSpecifications
- Product name: DERAY4-Handybox HAN-190 be
- Manufacturer: DSG-CANUSA

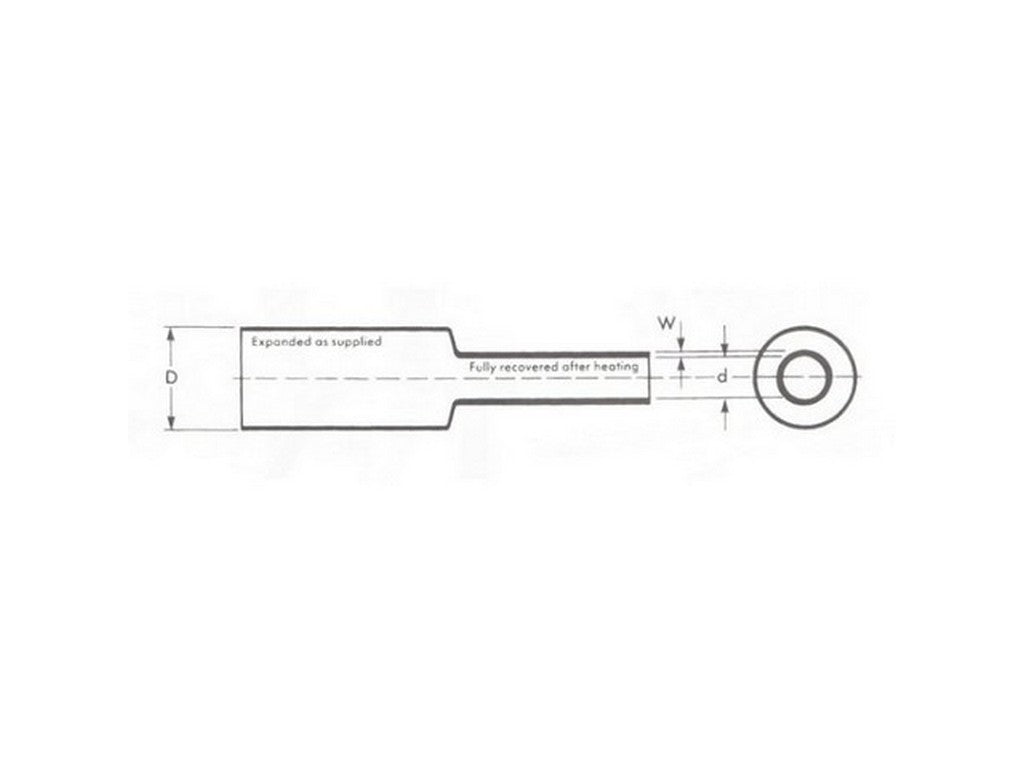

- Expanded inner diameter: 19.0 mm
- Fully shrunk inner diameter: 9.5 mm
- Nominal total wall thickness: 0.80 mm
- Length per mini-box: 4 m
- Shrink ratio: 2:1
- Minimum shrink temperature: 110 °C
- Continuous operating temperature range: -55 °C to 135 °C
- Material: modified polyethylene
- Colored variants: flame retardant and compliant with UL 224
- Dielectric strength: 24 kV/mm
