Heat-shrink tubing: DERAY®-H
DERAY®-H from DSG-CANUSA is a thin-walled, cross-linked polyolefin heat shrink tubing with a 2:1 shrink ratio. The product is available in a range of dimensions and colours; the specific variant with article number DERAY-H-16.0-100-BK indicates an expanded inner diameter of 16.0 mm (recovered 8.0 mm) and a reel delivery of 100 m in black (BK).
Features
- Material: modified PE (free of lead, silicone, and cadmium) — thin-walled, cross-linked
- Shrink ratio: 2:1
- Minimum shrink temperature: 110°C
- Continuous operating temperature: -55°C to 135°C
- High voltage property: Dielectric strength specified (technical data)
- Colour: Black (BK); reel delivery only available for black items
Typical applications
The documentation specifies the following areas of application for DERAY®-H, described neutrally and factually:
- Abrasion and mechanical protection

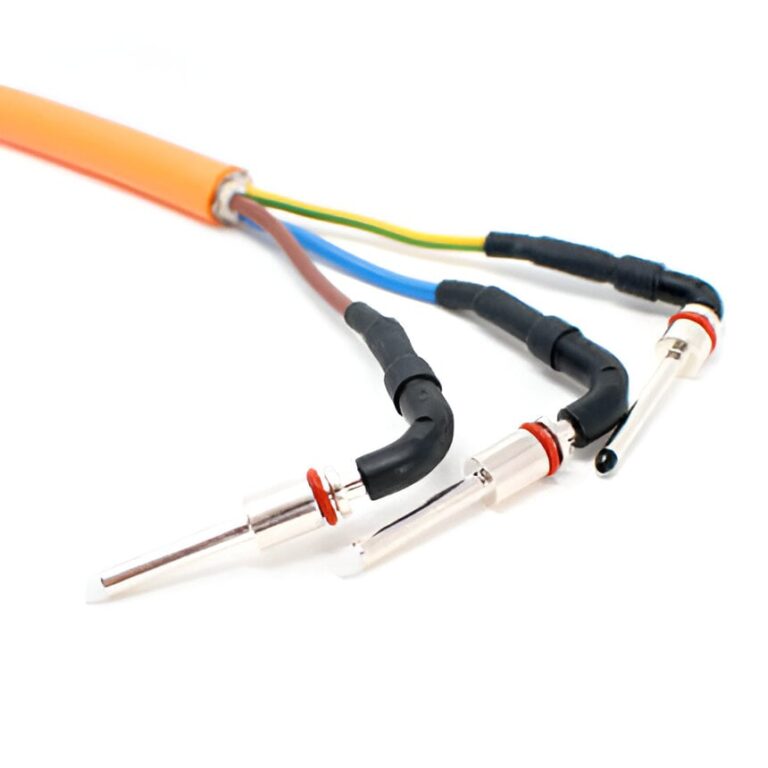

- Cable insulation, marking and bundling of electrical or mechanical components
- Strain relief
- Corrosion protection
Dimension and delivery
For article number 0625 (expanded size 16.0 mm), the manufacturer specifies the following measurement points and delivery units, corresponding to DERAY-H-16.0-100-BK:

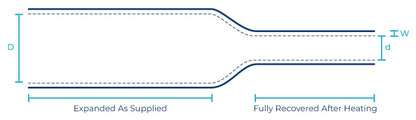

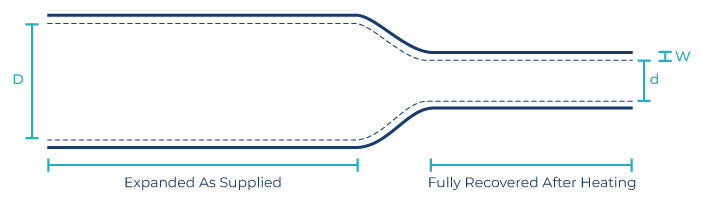

- Outer/inner: Expanded inner diameter 16.0 mm, recovered inner diameter 8.0 mm
- Wall thickness (nom.): 0.60 mm

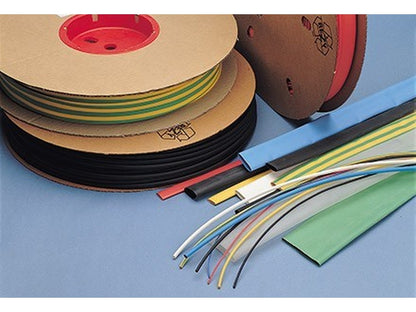

- Reel: 100 m; mini-reel: 50 m
Standards and listings
The datasheet specifies UL-224 and CSA 22.2 No 198.1 listings for coloured items (UL file # E107857; CSA file # 065789_0_000). The document also mentions approval for major automotive manufacturers' OEM specifications.
Documentation
See datasheet from the manufacturer
Specifications
- Product name: DERAY®-H (article: DERAY-H-16.0-100-BK)
- Material: Modified PE, free of lead, silicone, and cadmium
- Shrink ratio: 2:1
- Minimum shrink temperature: 110°C
- Continuous operating temperature: -55°C to 135°C
- Expanded inner diameter: 16.0 mm; recovered inner diameter: 8.0 mm
- Nom. wall thickness: 0.60 mm
- Reel delivery: 100 m (mini-reel: 50 m). Reel delivery only available for black items
- UL/CSA listings specified for coloured items: UL file # E107857; CSA file # 065789_0_000
