Heat-shrink tubing: DERAY-H
What the product is
DERAY-H is a thin-walled, crosslinked polyolefin heat-shrink tubing from DSG-Canusa designed for electrical insulation and mechanical protection. The product is supplied with a shrink ratio of 2:1 and a specified minimum shrink temperature of 110°C. Continuous operating temperature and other performance data are available in the manufacturer's datasheet.Features
- Crosslinked polyolefin (PE, modified)
- Shrink ratio: 2:1
- Minimum shrink temperature: 110°C
- Continuous operating temperature: -55°C to 135°C
- Available in several colors: black, red, white, clear, blue, yellow, green, brown and grey
- Colored variants are self-extinguishing
- Good dielectric strength and resistance to common fluids and solvents (see datasheet for measurement methods and values)
Typical applications
- Abrasion and mechanical protection
- Cable insulation, marking and bundling of electrical or mechanical components
- Strain relief
- Corrosion protection
Documentation
Specifications
- Material: PE, modified (crosslinked polyolefin)
- Shrink ratio: 2:1
- Minimum shrink temperature: 110°C
- Continuous operating temperature: -55°C to 135°C

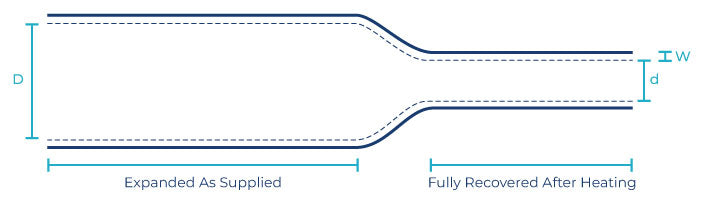

- Expanded size 12.7 mm recovers to internal diameter 6.4 mm (according to manufacturer's order scheme)
- Available colors: black, red, white, clear, blue, yellow, green, brown, grey
- Colored variants: UL 224 125°C ATF (UL file no. E107857) and CSA 22.2 No 198.1 125°C (CSA file no. 065789_0_000) — (applies to colors only)
