Product Description

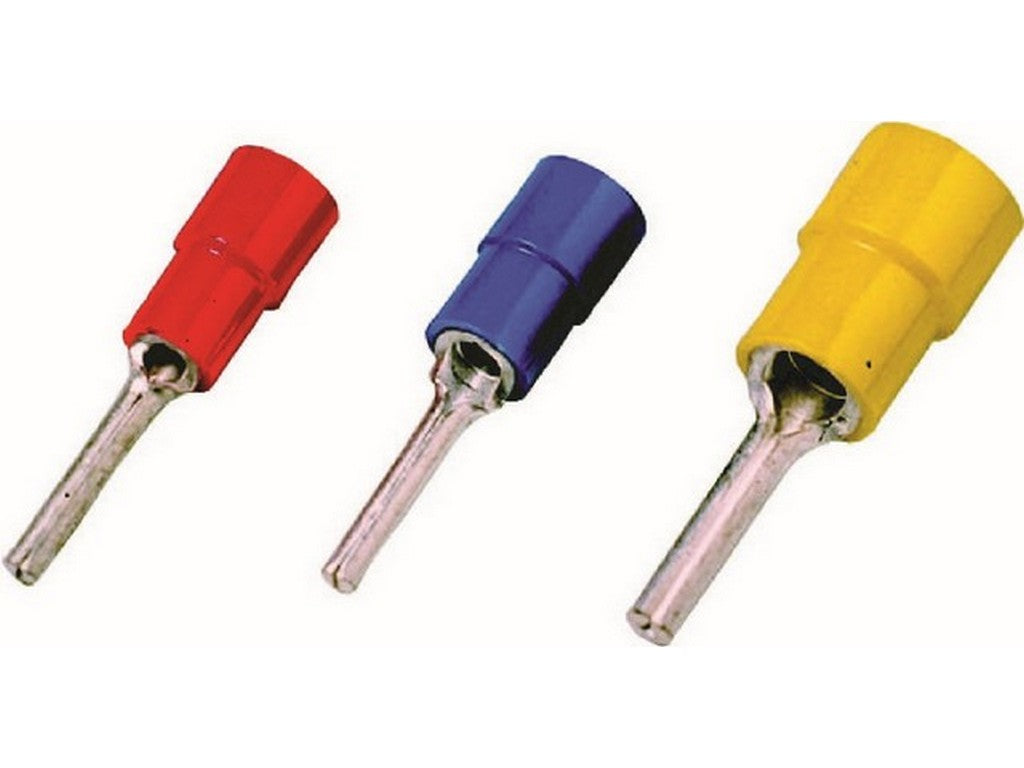

The ICIQ10ST is an insulated pin terminal (Stiftkabelschuh) from WEITKOWITZ designed for a nominal conductor cross-section of 10 mm². The product is intended for multi-stranded and fine-stranded conductors and features a hard-soldered crimp area for connection. The insulation color is red. The ICIQ10ST is indicated with a packing size of 50 pieces according to Intercable product data.
Design and Technical Features
- Type: Insulated pin terminal (Stiftkabelschuh).
- Manufacturer / manufacturer designation: WEITKOWITZ, ICIQ10ST.
- Intended conductor types: multi-stranded and fine-stranded conductors.
- Crimp area: hard-soldered crimp area (indicated as hartverlötet).
- Insulation color: red.
Typical Applications
Used for termination and electrical connection of multi-stranded and fine-stranded conductors with a nominal cross-section of 10 mm², where an insulated pin connection is required. The description in the manufacturer's product data directly indicates that the product is designed for these conductor types.
Specifications
- Manufacturer's part number: ICIQ10ST.
- Nominal conductor cross-section: 10 mm².
- Insulation color: red.
- Pin width d1: 4 mm.
- Pin diameter d3: 2.4 mm.
- Dimension d4: 7 mm.
- Total length l1: 34 mm.
- L2: 12 mm.
- Packing size: 50 pcs (indicated on the product list).
- Net weight: 0.25 kg per 100 pcs (stated in the manufacturer's product data).
Source: Product information verified on Intercable product page and manufacturer's product list (Intercable / WEITKOWITZ).
