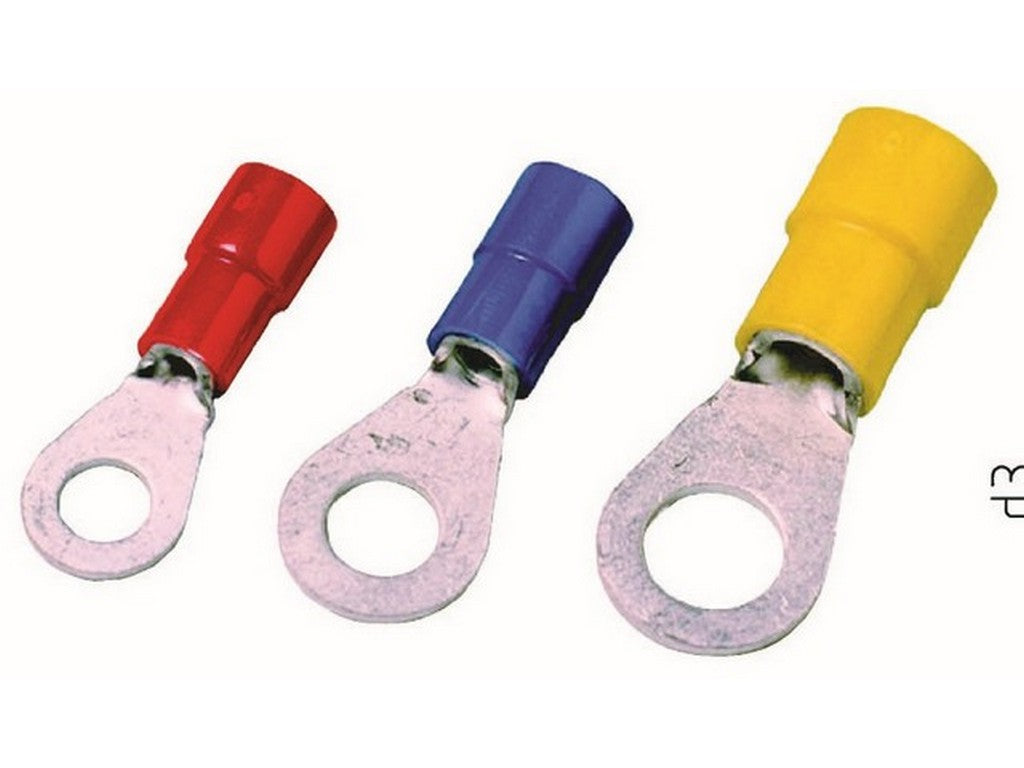

Insulated ring terminal – ICIQ14S
The ICIQ14S is an insulated ring terminal from WEITKOWITZ designed for connecting conductors with a nominal cross-section of 1 mm² to a metric screw connection size 4. The product is listed on Intercable Tools' product list and comes with a red insulation sleeve. The description below is based on the information provided on the manufacturer's product page.
Product characteristics
- Type: ICIQ14S (insulated ring terminal with flared/widened insulation sleeve)
- For conductor cross-section: 1 mm²
- Thread/size for connection: metric 4 (listed as "4" on the manufacturer's list)
- Insulation colour: red
- Crimping area: specified as hard-soldered crimping area
Documentation
Official product information and dimensions are published by Intercable Tools. See the manufacturer's product page.
Typical applications
The ICIQ14S is intended for use with multi-stranded and fine-stranded conductors and is used to establish an electrical connection to a metric screw connection size 4. This application is directly evident from the manufacturer's product description.
Mounting and delivery format
- Supplied in packs of 100 pcs.
- Net weight: 0.06 kg per 100 pcs. (stated by the manufacturer)
Specifications
- Product name: ICIQ14S
- Manufacturer: WEITKOWITZ (stated in input)
- Nominal conductor cross-section: 1 mm²
- Connection thread: metric 4
- Insulation colour: red
- Dimensions: d1 = 1 mm, d4 = 4 mm, D2 = 4 mm, d3 = 7 mm, L = 17 mm
- Crimping area: hard-soldered crimping area
- Suitable for: multi-stranded and fine-stranded conductors
- Packing size: 100 pcs. per pack
- Net weight: 0.06 kg per 100 pcs.
- Source: Intercable Tools product page for the specified article.
