Product Overview

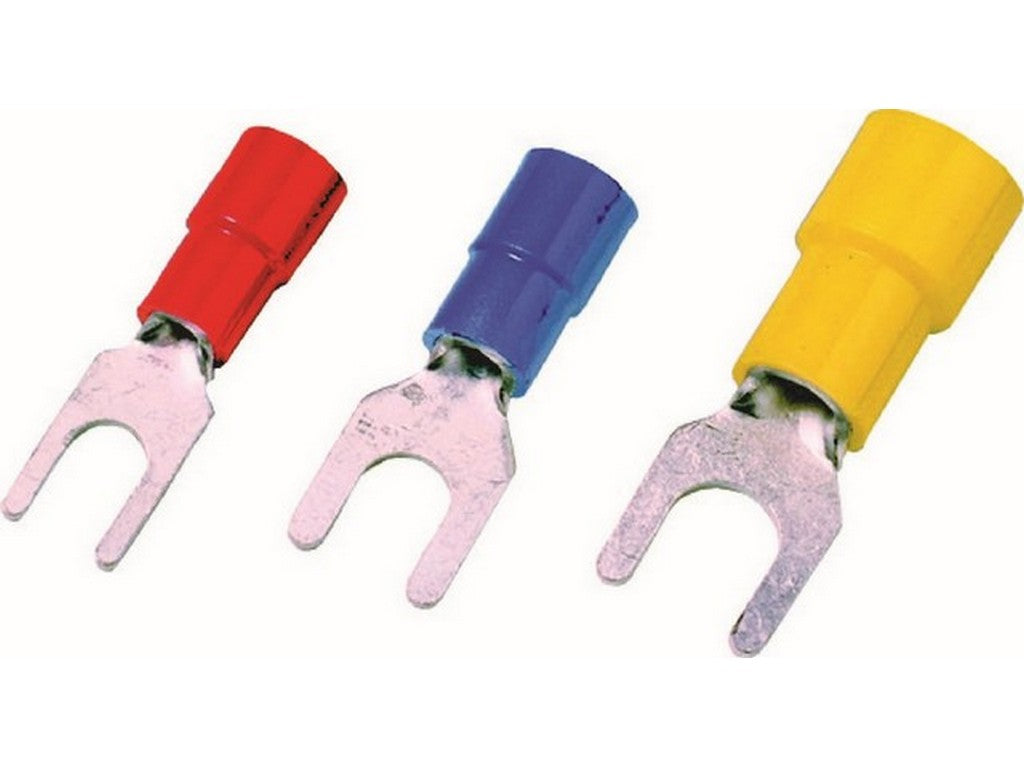

This insulated fork crimp lug ICIQ66G from WEITKOWITZ is specified according to DIN 46237 and is intended for multi-stranded and fine-stranded conductors. The crimping area is hard-soldered ("Pressbereich hartverlötet"). The ICIQ66G is listed with metric connection dimensions and yellow insulation in the manufacturer's product table.
Technical Description
- Type: insulated crimp lug, fork type (DIN 46237).
- Crimping area: hard-soldered (specified by the manufacturer).
- Suitable for: multi-stranded and fine-stranded conductors (production text).
Typical Applications
The ICIQ66G is used for connecting multi-stranded and fine-stranded conductors where a fork connection according to DIN 46237 is required. This description is based on the manufacturer's product information and indicates the intended area of application (for multi-stranded and fine-stranded conductors).
Specifications
- Manufacturer: WEITKOWITZ.
- Manufacturer's part number: ICIQ66G.
- Standard: DIN 46237 (specified by the manufacturer).
- Nominal cross-section (max): 6 mm².
- Connection thread (metric): 6 (M6).
- Insulation color: yellow.
- Total length L: 23 mm.
- Net weight: 0.17 kg per 100 pcs.
- Dimensions specified by the manufacturer: d1 = 3 mm; d4 = 6 mm; D2 = 6 mm; d3 = 11 mm.
- Quantity per specified unit: 100 pcs (in the product table).
