Description

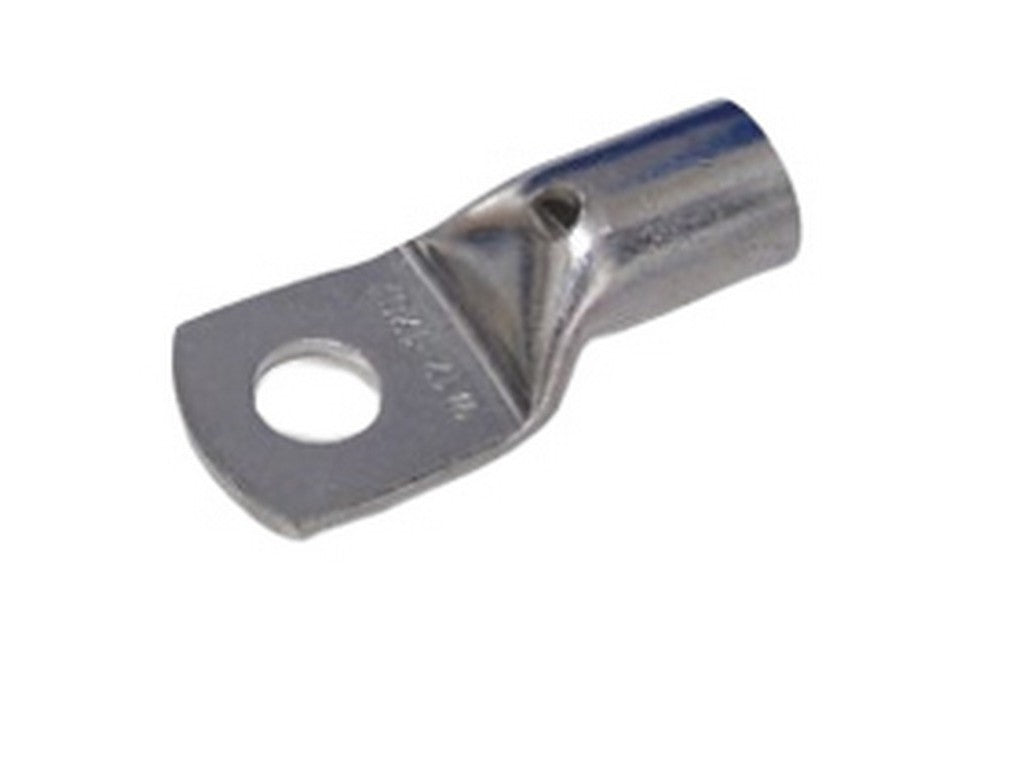

The ICR12012SL is a tubular cable lug (R-series) for copper conductors with a nominal cross-section of 120 mm² and an M12 connection. The variant is designated with the suffix SL, which means that the cable can be visually inspected through a built-in inspection hole after insertion. The product information specifies the material and dimensions, as well as the package size.Material and finish
- Material: Copper (Cu-HCP 99.9%).
- Surface: Tinned finish.
- Variant: SL version with inspection hole for visual inspection of the inserted conductor.
Technical function
The ICR12012SL functions as a tubular cable lug for terminating/ending a copper conductor with a nominal cross-section of 120 mm² and is fastened using an M12 screw. The inspection hole allows for checking the correct insertion of the conductor before the connection is made.Documentation
The manufacturer's product information and dimension table are available online. See the manufacturer's product page for the original product table and further reference information: Manufacturer's product pageTypical applications
The ICR12012SL is used for terminating/ending copper conductors with a nominal cross-section of 120 mm², where connection is made with an M12 screw. The inspection hole is used for visual verification of correct conductor insertion before fastening.Specifications
- Product name: ICR12012SL.
- Manufacturer specified: WEITKOWITZ.
- Type: Tubular cable lug (R-series), SL variant (with inspection hole).
- Nominal cross-section: 120 mm².
- Connection thread size (screw): M12.
- Material: Copper (Cu-HCP 99.9%).
- Surface: Tinned.
- Barrel inner diameter (D2/d2): 13 mm.
- Total length (L/l): 51 mm.
- Additional dimensions specified in the manufacturer's table: d1 = 15 mm; d3 = 20 mm; B = 29 mm; A = 26 mm.
- Net weight per 100 pcs: 7.85 kg (listed in the manufacturer's product table).
- Package size: 25 pcs per package.
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
