Product Description

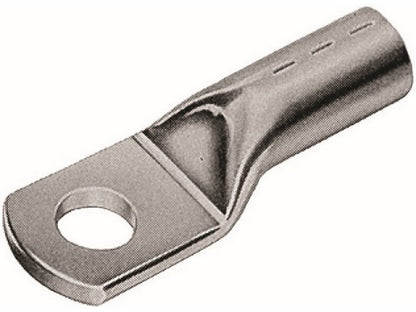

The ICD30012 is a straight tubular copper cable lug manufactured according to DIN 46235. The product is supplied by WEITKOWITZ and is specified for a 300 mm² conductor. The material is Cu-HCP electrolytic copper with a purity of more than 99.95%; the product is available either electro-tinned or bare.
Design and Dimensions

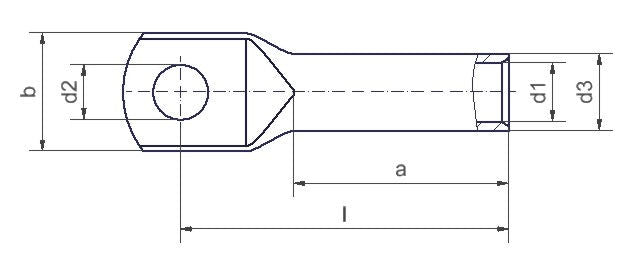

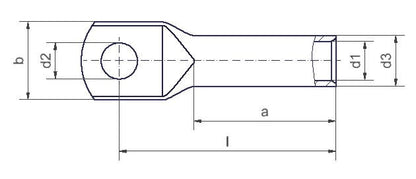

- Flange bolts: specified for M12 (flange inner diameter d2 = 13 mm).
- Tube dimensions: inner diameter d1 = 24.5 mm, outer diameter d3 = 32 mm.
- Flange width b = 48.5 mm.
- Total length l = 104 mm; barrel length a = 50 mm.
Typical Applications
The ICD30012 is specified for mounting and connection tasks where conductors of the following types are used:
- Single-stranded conductors.
- Multi-stranded conductors.
- Fine stranded conductors.
- Extra-fine stranded conductors.
Documentation
Input and dimension data are available on Intercable's official product page for the DIN series / DIN 46235. See datasheet from the manufacturer
Specifications
- Product name: ICD30012.
- Manufacturer: WEITKOWITZ.
- Type: straight tubular copper cable lug, DIN 46235.
- Conductor size: 300 mm².
- Material: Cu-HCP electrolytic copper (>99.95% purity).

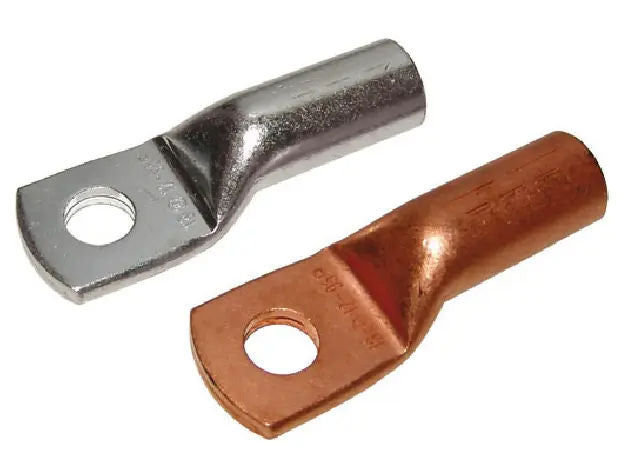

- Surface: available electro-tinned or bare.
- Screw: M12 (flange inner diameter d2 = 13 mm).
- Tube inner diameter d1 = 24.5 mm; tube outer diameter d3 = 32 mm.
- Flange width b = 48.5 mm; total length l = 104 mm; barrel length a = 50 mm.
- Suitable for: single-, multi-, fine-, and extra-fine conductor strands.
