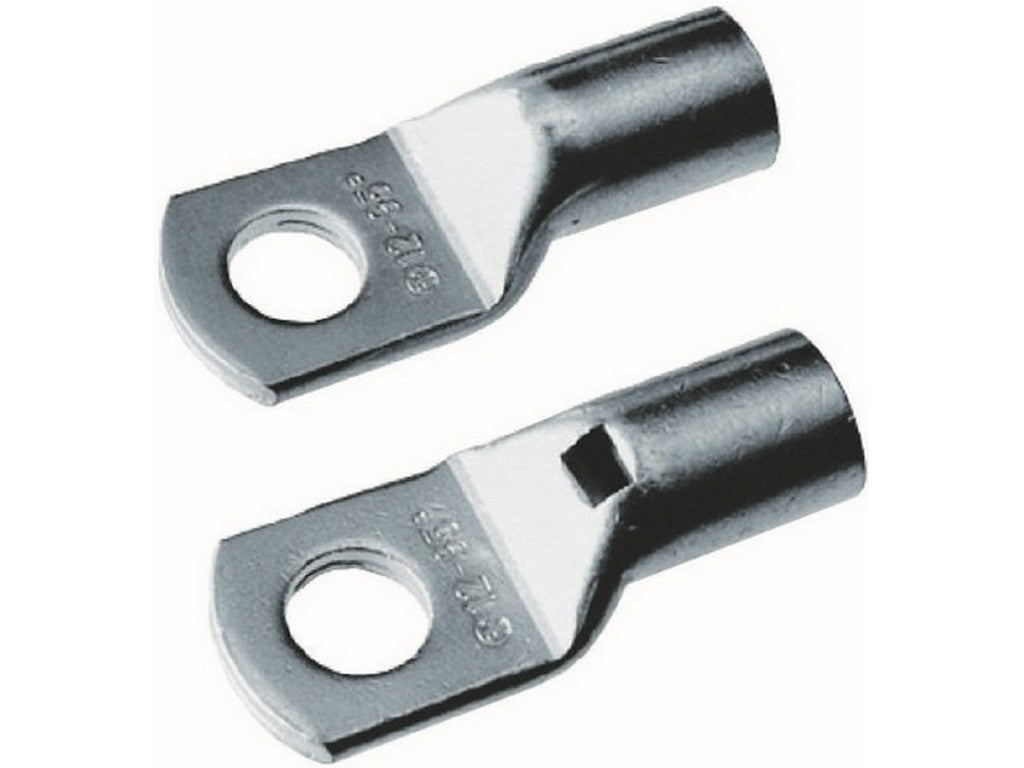

Tubular Cable Lugs, R-series — WEITKOWITZ ICR24016
The ICR24016 is a tubular cable lug (R-series) listed on Intercable Tools' product page. The product is specified with a nominal conductor cross-section of 240 mm² and a metric connection thread of M16 (Anschlussgewindemaß 16). The description below is limited to the information provided in the manufacturer's product data on Intercable Tools' R-series table.
Key Features
- Type: ICR24016
- Manufacturer: WEITKOWITZ (listed by Intercable Tools)
- Nominal conductor cross-section: 240 mm²
- Connection thread (metric): 16 (M16)
Typical Applications
The ICR24016 is used for connecting various conductor types, as indicated on the R-series product page: multi-stranded, fine-stranded, compressed multi-stranded and fine-stranded round conductors, as well as sector conductors and solid conductors. This description is based directly on the manufacturer's product text and specifies the conductor types for which the tubular cable lug is intended.
Technical Details
The recorded dimensions for the ICR24016 in the manufacturer's table are:
- d1 = 21 mm
- d3 = 26 mm
- D2 = 17 mm
- B = 38 mm
- L = 69 mm
- A = 35 mm
Specifications
- Type number: ICR24016
- Manufacturer: WEITKOWITZ (listed on Intercable Tools)
- Nennquerschnitt / Nominal conductor cross-section: 240 mm²
- Anschlussgewindemaß / Connection thread: 16 (metric)
- Dimensions: d1=21 mm, d3=26 mm, D2=17 mm, B=38 mm, L=69 mm, A=35 mm
- Net weight: 13.88 kg per 100 units (indicated in table)
- Packaging unit (Stück): 10 (indicated in table)
The information in this product text originates from Intercable Tools' product overview for the R-series, where the ICR24016 is listed in the manufacturer's table. No further data sheet or product video was specified in the verified source.
The content has been generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
