Product Overview

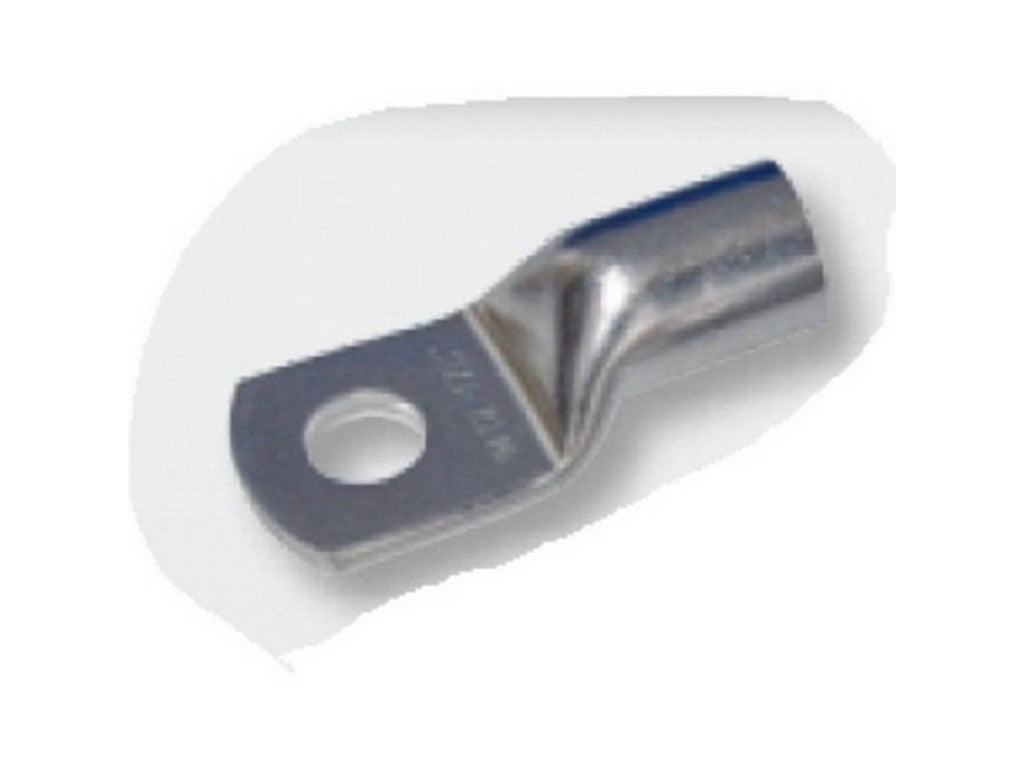

The ICR24012 is an R-series straight tubular cable lug from WEITKOWITZ, specified as a tubular copper cable lug on the Intercable product list. The product is designed for a 240 mm² conductor cross-section and is specified with an M12 bolt hole.Material and Construction
The ICR24012 is specified with the material designation Cu-HCP (copper) and has an electro-tinned surface. The R-series is described as being without an inspection hole; inspection hole versions are listed separately (ICR...SL).Dimensions
The dimensions for the ICR24012 are provided in the product table and state the following values:- d1 = 21 mm
- d3 = 26 mm
- d2 = 13 mm
- b = 38 mm
- l = 67 mm
- a = 35 mm
Documentation
The information in this product description is based on the data provided on the Intercable product list for ICR24012 (manufacturer information provided in the input).Specifications
- Product Name: ICR24012
- Manufacturer: WEITKOWITZ
- Series: R-series (without inspection hole)
- Type: straight tubular copper cable lug
- Material: Cu-HCP (copper)
- Surface: electro-tinned
- Intended conductor cross-section: 240 mm²
- Bolt hole: M12
- Dimensions: d1=21 mm, d3=26 mm, d2=13 mm, b=38 mm, l=67 mm, a=35 mm
- Note: R-series without inspection hole (inspection hole versions listed separately)
