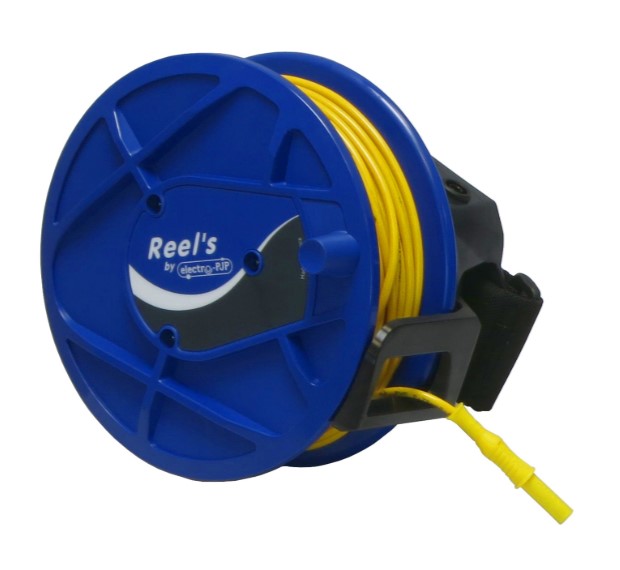

STH-REEL2310-30J/V cable reel from ELECTROPJP
The STH-REEL2310-30J/V is a cable reel for professional use when neat and controlled unwinding of cable is required in a work setup. It is designed for electrical and testing environments where voltages and currents are handled that require both insulation and construction to meet specific standards.
The reel is rated for 1000 V CAT III, meaning it is intended for tasks requiring a higher safety category than general low-voltage use. When the cable is on the reel, the rated current is 2 A. When the cable is fully unwound and a 2.5 mm² cable is used, the rated current is 36 A. This clearly shows that the usage situation greatly influences the load.
The casing is made of ABS with UL94 V0 classification, and the metallic contacts are made of nickel-plated brass. These are materials typically chosen when equipment is to be used in a technical environment and simultaneously maintain stable and reliable contact.
Versions with cable lengths of 30 m and 50 m are available. The provided source text also includes dimensions and weight, which can be useful when the reel needs to be integrated into an installation or transported between workplaces.
