Product Overview

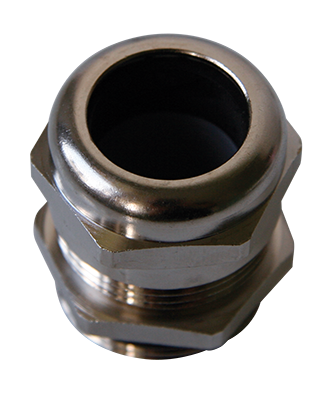

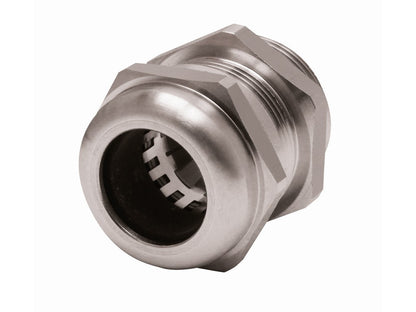

This EMC cable gland from SIB, SIB C5232200, is a nickel-plated brass SIB-TEC cable gland designed for EMC applications. The SIB C5232200 comes with a neoprene (65 ShA) sealing ring and is intended for installation in metric M32 threads in accordance with EN 60423.Construction and Materials

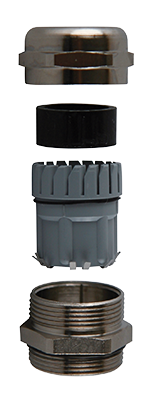

- Body and nut: nickel-plated brass
- Sealing ring: neoprene 65 ShA
- O-ring: nitrile 70 ShA

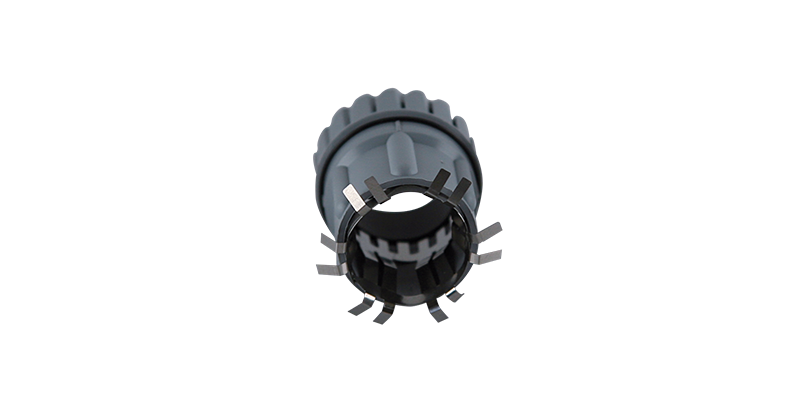

- Metal contact/insert: stainless steel (specified as metal insert in manufacturer data)
The product is documented in the manufacturer's technical material; relevant technical information can be found in SIB's datasheet.
See datasheet from the manufacturer
Typical Applications
- Used for EMC cable entries where an M32 metric threaded connection is specified.
- Used for sealing and clamping cables with diameters in the range of 11.0–21.0 mm.
Protection and Temperature
The SIB C5232200 is classified with protection rating IP68 and specified for operating temperatures from -40 °C to +100 °C according to the manufacturer's information.
Mounting and Packaging
- Thread size: M32 (EN 60423 reference specified in manufacturer text)
- Packing quantity: 20 pcs. per package
Specifications
- Manufacturer: SIB
- Product Name / Part Number: C5232200
- Type: EMC cable gland (SIB-TEC)
- Material: Nickel-plated brass (body and nut)
- Sealing ring: Neoprene 65 ShA
- Clamping range: 11.0–21.0 mm
- Thread: M32 (EN 60423 referenced)
- Protection rating: IP68
- Operating temperature: -40 °C to +100 °C
- Packaging: 20 pcs. per package
- Compliance: RoHS and EN 50262 (specified by the manufacturer)
