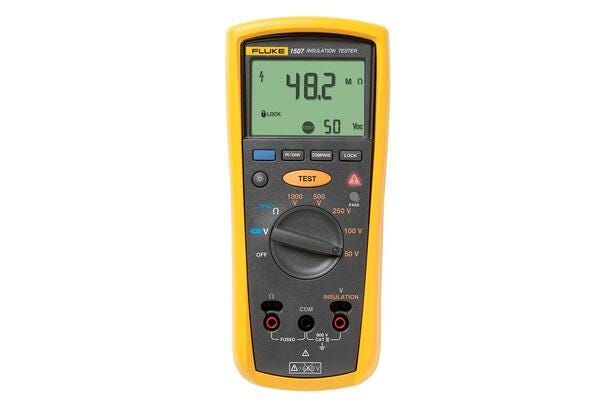

Fluke 1507 Insulation Tester
The Fluke 1507 is a handheld instrument for measuring insulation resistance in electrical installations and equipment. In short, it is used to check whether insulation is still holding up properly, or if there are incipient leakage currents and faults in cables, motors, panels or other parts of an installation.
It can also be used for general electrical tasks, as it simultaneously measures AC/DC voltage, continuity, and earth/ground connection resistance. This makes it practical as a comprehensive tool for troubleshooting and inspection, where more than one measurement is often needed to proceed.
What makes it particularly relevant is the voltage range for insulation tests. It has several test voltages, allowing you to choose a level appropriate for the task. At the same time, it has a safety function that blocks the test if voltage is present at the terminals, and it automatically discharges capacitive voltages after the measurement. This is important in practice because it reduces the risk of incorrect measurements and makes the work safer.
The Fluke 1507 is best suited for technicians and electricians who need a portable tester for ongoing checks and troubleshooting, not just a simple voltage tester. It is also ideal when you want one instrument for both insulation measurement and the most common electrical control measurements.
You can read more here:
See datasheet from the manufacturer
Specifications
- Handheld insulation tester
- Measures insulation resistance from 0.01 MΩ to 10 GΩ
- Test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
- Measures AC/DC voltage from 0.1 V to 600 V
- Measures earth/ground connection resistance from 0.01 Ω to 20.00 kΩ
- 200 mA continuity test
- Live-circuit detection, which blocks the test if terminal voltage is above 30 V
- Automatic discharge of capacitive voltages
- Overvoltage rating: CAT IV 600 V
- Powered by 4 AA batteries
- Supplied with remote probe with trigger, test leads, test probes, and alligator clips
