STAUBLI 69.0013
STAUBLI 69.0013 is a DMI-1.6A fuse type for measurement and testing equipment. It is used as a protective spare part in test accessories where the circuit needs to be protected against excessive current. It is rated with a nominal current of 1.6 A, making it suitable for applications where precisely this current limit is relevant.
In practice, it is a small component, but it has an important task: if a fault or current surge occurs, the fuse helps to break the circuit. This is precisely why it is part of Stäubli's program for test accessories. The goal here is to keep the measurement setup safe and reliable, even when the equipment is used professionally in testing and measurement.
The fuse has a format of 6.3 x 32 mm and a breaking capacity of 30 kA at both AC 1000 V and DC 1000 V. These are relevant data when choosing a spare part for equipment where both voltage and breaking requirements must match the specific task.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 69.0013
- Type: DMI-1.6A
- Product type: fuse
- Rated current: 1.6 A

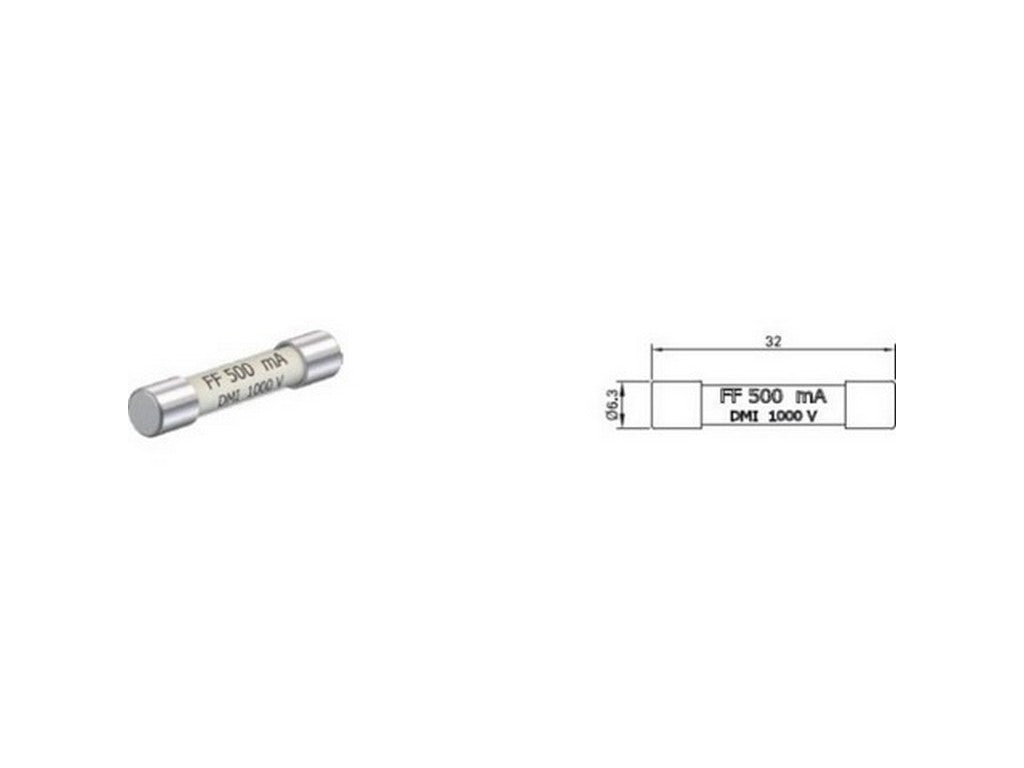

- Dimensions: 6.3 x 32 mm
- Breaking capacity: 30 kA
- AC voltage: 1000 V
- DC voltage: 1000 V
- Included in Stäubli’s Test Accessories main catalog
