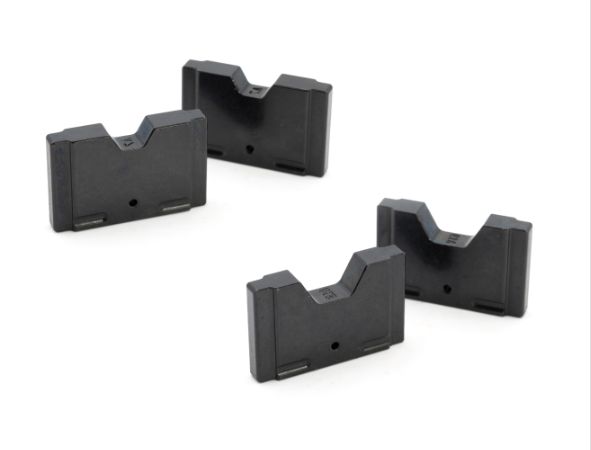

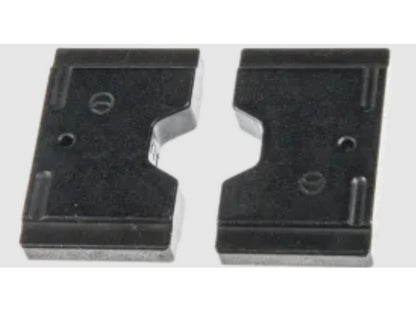

HEX.DIE SET USED WITH 50KN TOOLS, FOR CRIMPING AM TERMINALS, 4-6SQMM.SIZE CONDUCTORS

Product Overview

The ME1-50 is a crimping die from the Cembre ME-50 family, designed for 50 kN tools. The die features a hexagonal crimp geometry and is intended for crimping conductors within a specified cross-sectional area.

Features and Functionality

• Crimp section: 4–6 mm²
• Crimp geometry: Hexagonal
• Material (family): Specially hardened steel

The ME1-50 is used as an interchangeable insert in compatible 50 kN crimping tools where the specified crimp section and hexagonal geometry are required. The physical dimensions of the die are indicated and may be relevant when checking compatibility in tool inserts.

Documentation

For technical details and manufacturer's instructions, please refer to the manufacturer's datasheet:

View datasheet from manufacturer

The datasheet also contains a direct warning about correct use: dies must not be closed without inserting a connector/lug.

Specifications

• Product Name: ME1-50
• Manufacturer: CEMBRE
• Manufacturer's Part Number: 2676005
• Connection Type/Tool Class: For 50 kN tools
• Crimp Section Area: 4–6 mm²
• Crimp Geometry: Hexagonal
• Material (family): Specially hardened steel
• Dimensions: 38x24x7 mm
• Imprint Width: 7 mm

Content generated using AI – we reserve the right for errors.
Contact HIN for further product information.
