Product Overview

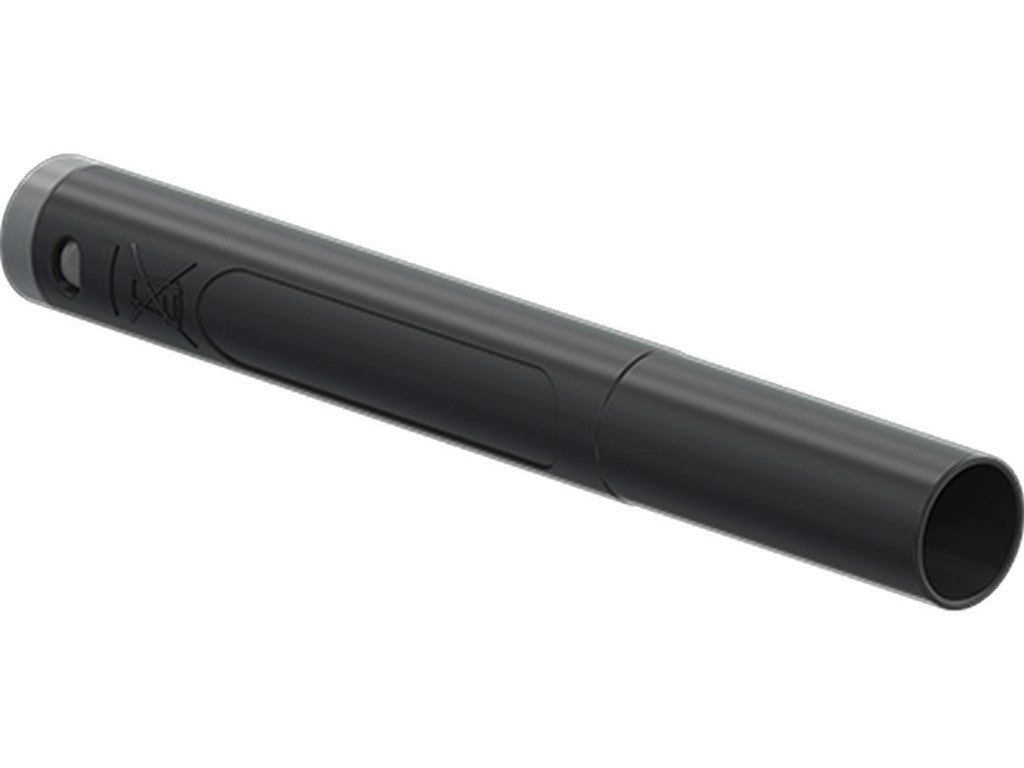

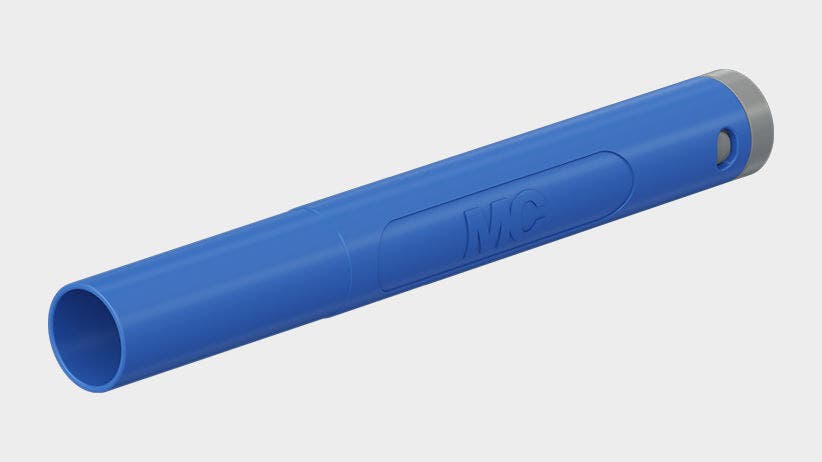

SAL-4N-39-TW from STAUBLI
This test plug model is an inline, extra-slim Ø 4 mm test plug designed for self-assembly of test leads. The SAL-4N-39-TW features a spring-loaded MULTILAM contact, solder connection, and a rigid insulating sleeve solution. The component's construction and technical data are detailed in the manufacturer's datasheet (08.2024) and are listed below.Documentation
The official manufacturer datasheet contains complete technical data and approval information: View datasheet from manufacturer
Typical Applications
- Designed for self-assembly of test leads, as specified by the manufacturer.
Technical Description
The SAL-4N-39-TW features a 4 mm plug diameter and an extra-slim profile. The spring-loaded MULTILAM contact provides mechanical contact pressure, and electrical connections are established via soldering. The rigid insulating sleeve is integrated into the design as indicated in the datasheet.
Specifications
- Product name: SAL-4N-39-TW (Item number 66.2040-*)
- Manufacturer: STAUBLI
- Manufacturer's item number: 662040-21
- Plug diameter: 4 mm
- Outer diameter: 8.0 mm
- Contact: spring-loaded MULTILAM
- Connection: solder connection
- Insulation: rigid insulating sleeve
- Acceptable cable maximum: up to Ø 3.9 mm / 2.5 mm²
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Surface treatment electrical contact: nickel (Ni)
- Base material electrical contact: CuZn
- Test accessory according to: IEC EN 61010-031
- Approvals: UR
- Datasheet date: 08.2024
