Product Overview

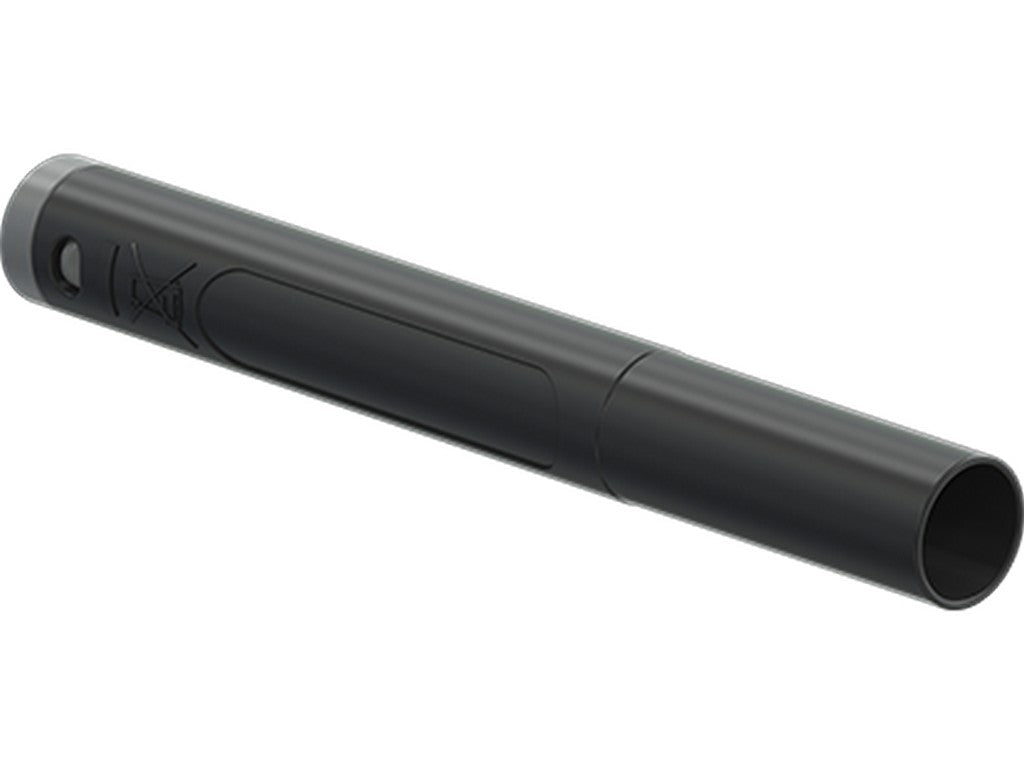

The SAL-4A-39-TW is an in-line, extra-slim Ø 4 mm plug from STAUBLI intended for self-assembly of test leads. The plug features a spring-loaded MULTILAM contact, a rigid insulating sleeve, and a solder connection. The product is specified as test accessory according to IEC EN 61010-031 and appears in the manufacturer's datasheet dated 09.2024.
Design and Contact
- Spring-loaded MULTILAM contact
- Contact surface: gold (Au) on CuZn base
- Rigid insulating sleeve
- Solder connection
Documentation
Further technical details and official documentation can be found in the manufacturer's datasheet:
View manufacturer's datasheetTypical Applications
The SAL-4A-39-TW is specified for self-assembly of test leads and is used as a test accessory in accordance with IEC EN 61010-031. Its primary function, as stated in the product text, is to serve as an inline plug for test leads during self-assembly.
Performance Values
- Rated values: 1000 V (CAT II) and 600 V (CAT III)
- Current rating: 32 A
- Max cable outer diameter: 3.9 mm
- Max conductor cross-section: 2.5 mm²
Materials and Dimensions
- Diameter of plug system: 4 mm
- Contact base material: CuZn
- Contact surface: Au (gold)
- Outer diameter: 8.0 mm
Notes
- The product is listed as a test accessory according to IEC EN 61010-031 and is specified in the datasheet dated 09.2024.
- Approvals: UR (specified in the datasheet).
Specifications
- Product name: SAL-4A-39-TW (order no. 66.2041-*)
- Manufacturer: STAUBLI
- Manufacturer's part number: 662041-21
- Plug type: In-line, extra-slim Ø 4 mm with spring-loaded MULTILAM
- Connection: Solder connection
- Insulating sleeve: Rigid insulating sleeve
- Rated values: 1000 V (CAT II) / 600 V (CAT III)
- Current: 32 A
- Max cable outer diameter: 3.9 mm
- Max conductor cross-section: 2.5 mm²
- Contact surface: Gold (Au) on CuZn
- Outer diameter: 8.0 mm
- Standard: Test accessory according to IEC EN 61010-031
- Datasheet: 09.2024
- Approval: UR
