STAUBLI SAL-4N-39-TW

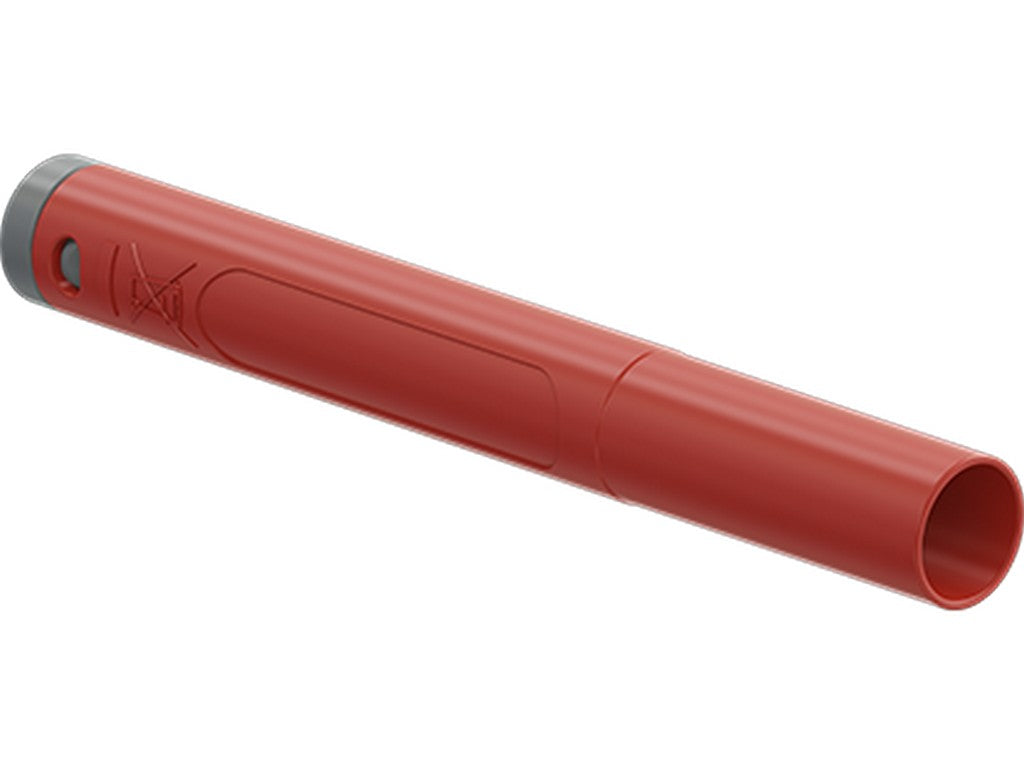

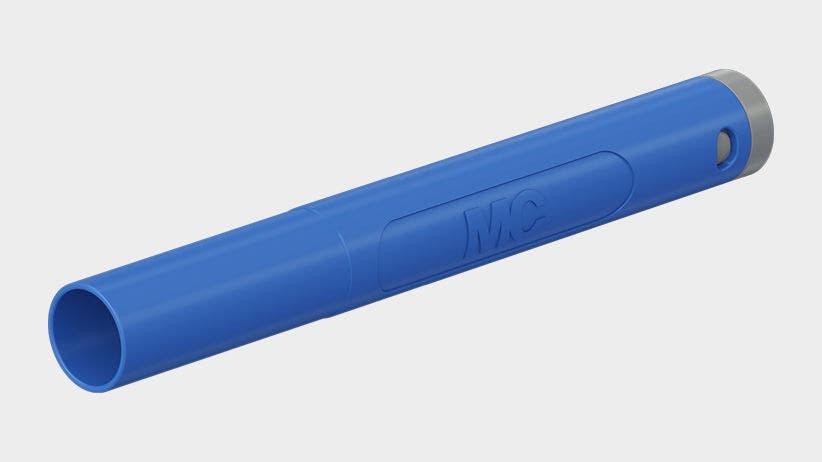

The STAUBLI SAL-4N-39-TW is an in-line Ø 4 mm test plug for self-assembly of test leads. It is used when building a lead for measurement and testing work, where a slim plug with a solder connection and a fixed insulating sleeve are required.
Inside, there is a spring-loaded MULTILAM contact, which is the contact solution Stäubli uses in this type of test component. It is a practical detail in a professional measurement setup, as it is among the parts included in the actual connection between the lead and the measuring equipment.
The plug is rated for 1000 V CAT II / 32 A and 600 V CAT III / 32 A. It is also specified as an accessory for testing according to IEC EN 61010-031 and has UR approval. The cable diameter can be up to 3.9 mm, and the conductor cross-section can be up to 2.5 mm².
If you are working with the assembly or repair of test leads, this is therefore a compact plug part that fits when a 4 mm connection and solder mounting are desired.
See datasheet from the manufacturer
Typical applications
- Self-assembly of test leads
- Assembly of measuring leads for testing and measurement
- Professional 4 mm connections in laboratory and service environments
Specifications
- Manufacturer: STAUBLI
- MPN: 662041-22
- Product: SAL-4N-39-TW
- Type: In-line, extra slim Ø 4 mm plug for self-assembly of test leads
- Contact: Spring-loaded MULTILAM
- Connection: Solder connection
- Insulation: Rigid insulating sleeve
- Contact material: CuZn
- Surface treatment: Ni
- Outer diameter: 8.0 mm
- Rated data: 1000 V CAT II / 32 A
- Rated data: 600 V CAT III / 32 A
- Max. cable diameter: 3.9 mm
- Max. conductor cross-section: 2.5 mm²
- Standard: IEC EN 61010-031
- Approval: UR
