In-line, extra-slim Ø 4 mm plug
Product description

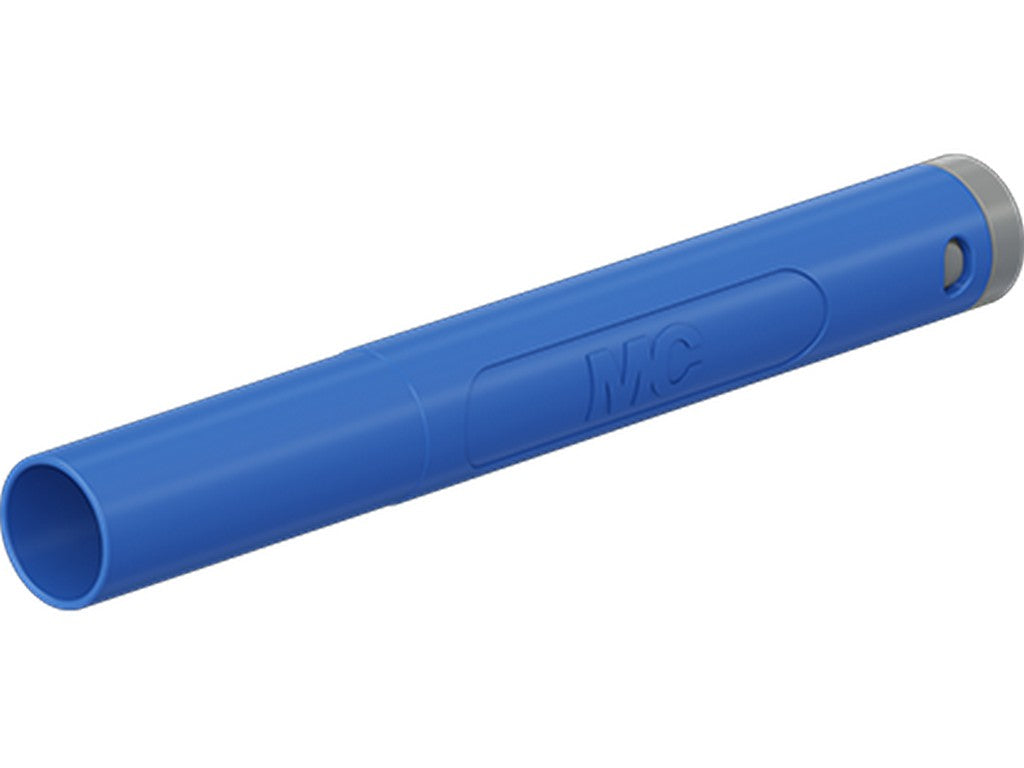

The SAL-4N-39-TW from STAUBLI is an in-line, extra-slim Ø 4 mm plug designed for self-assembly of test leads. The plug features a spring-loaded MULTILAM contact, a rigid insulating sleeve, and a solder connection. The product is listed as part number 66.2040-* in the manufacturer's documentation.Technical details
- Contact type: spring-loaded MULTILAM
- Connection: solder connection
- Insulation: rigid insulating sleeve
- Surface treatment on electrical contact: Ni (nickel-plated)
- Base material for contact: CuZn
- Outer diameter: 8.0 mm
- Acceptable cable diameter: up to Ø 3.9 mm or 2.5 mm²
Documentation
Typical applications
- Used for self-assembly of test leads, as stated in the manufacturer's description.
Specifications
- Product name: SAL-4N-39-TW
- Part number: 66.2040-*
- Diameter of plug system: 4 mm
- Rated values: 1000 V (CAT II) and 600 V (CAT III)
- Current: 32 A
- Surface treatment: Ni
- Base material: CuZn
- Outer diameter: 8.0 mm
- Cable acceptance: up to Ø 3.9 mm or 2.5 mm²
- Test accessories in accordance with: IEC EN 61010-031
- Approvals: UR
