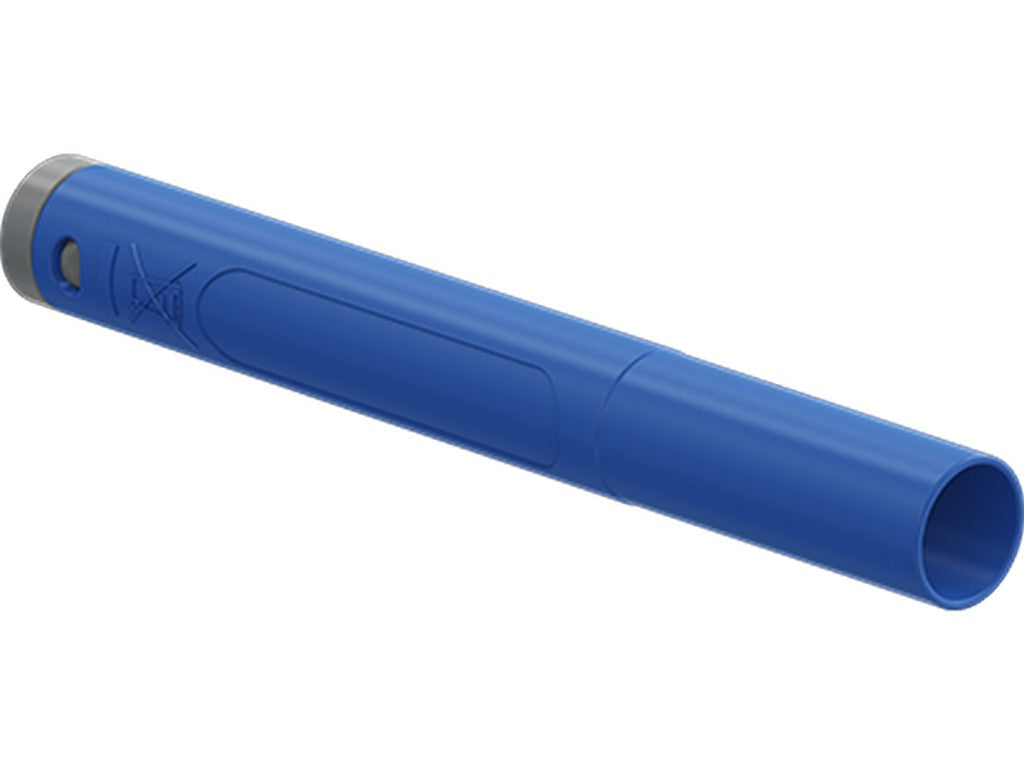

STAUBLI SAL-4N-39-TW
The STAUBLI SAL-4N-39-TW is an extra slim 4 mm plug for self-assembly of test leads. It is used when building a test lead with a fixed and compact plug connection, where both touch-safety and electrical data requirements are important.
Inside, there is a spring-loaded MULTILAM contact, which helps ensure a stable connection in the plug. It has a rigid insulating sheath and solder connection, so it can be assembled directly onto the cable during installation. With a maximum cable adaptation of Ø 3.9 mm, corresponding to 2.5 mm², it is designed for building test leads in professional measurement equipment.
In practice, it is a spare part or component for those who assemble test leads for electrical engineering and measurement. It is designed for the 4 mm plug system and has an outer diameter of 8.0 mm, keeping it compact in design.
Clear markings on the electrical limits are also included: 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A. The product is also specified with UR approval and is a test accessory according to IEC EN 61010-031.
See datasheet from the manufacturerSpecifications
- Manufacturer: STAUBLI
- MPN: 662041-23
- Product name: SAL-4N-39-TW
- 4 mm plug for self-assembly of test leads
- In-line, extra slim design
- Spring-loaded MULTILAM contact
- Rigid insulating sheath
- Solder connection
- Max. cable: Ø 3.9 mm (2.5 mm²)
- Outer diameter: 8.0 mm
- Rating: 1000 V, CAT II, 32 A
- Rating: 600 V, CAT III, 32 A
- Contact material: CuZn
- Surface treatment: Ni
- Approval: UR
- Standard: IEC EN 61010-031
