STAUBLI SACR10-4A-39-TW

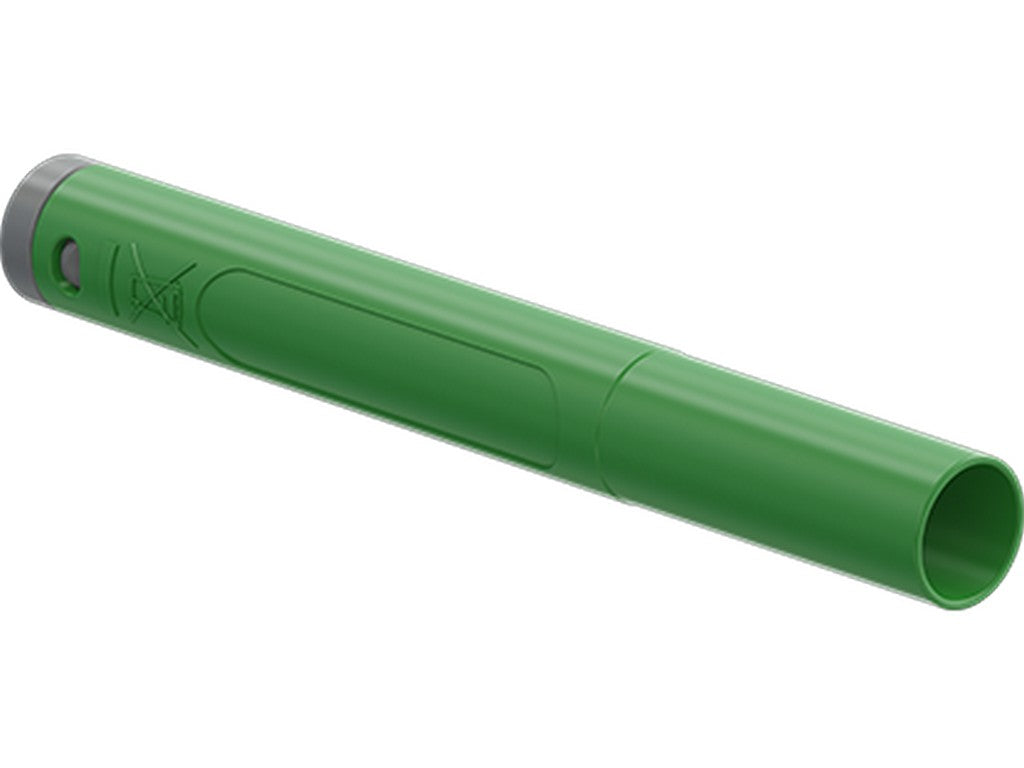

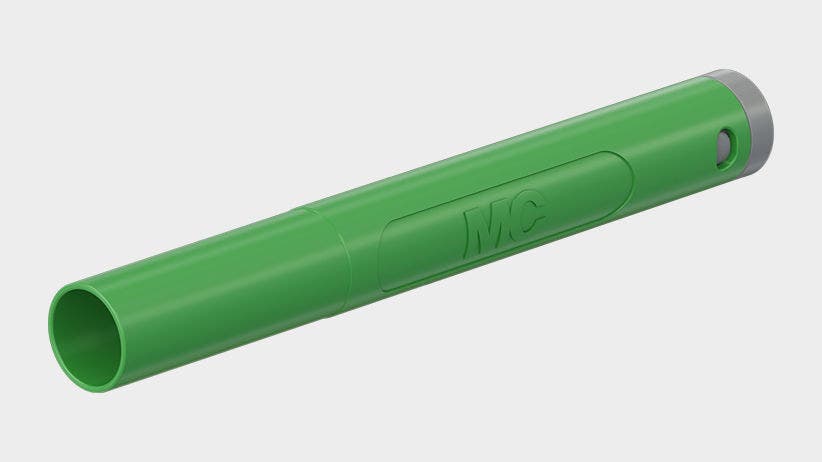

The STAUBLI SACR10-4A-39-TW is an extra-slim 4 mm plug for test leads, assembled manually with a crimp connection. It is used when making your own measuring leads for testing and measurement, and where there is a need for a compact plug with a spring-loaded MULTILAM contact and a rigid insulating sleeve.
In practice, it is a spare part or component for building test leads where a secure and professional connection is desired. It is designed for conductors up to Ø 3.9 mm, corresponding to max. 1.0 mm², and the electrical contact is gold-plated on CuZn material. This provides a standardized plug connection in a format that fits 4 mm test systems.
The plug is rated for 1000 V, CAT II and 600 V, CAT III, both at 19 A. It is also listed as test accessory according to IEC EN 61010-031 and has UR approval.
If you are building or repairing test leads for professional use, this is a component that makes it possible to assemble a lead with a compact and robust end, without compromising the standardized connection of the measuring equipment.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 662043-25
- Product designation: SACR10-4A-39-TW
- Plug system: 4 mm
- Mounting: In-line
- Connection: Crimp
- Contact: Spring-loaded MULTILAM
- Insulation: Rigid insulating sleeve
- Conductors: Up to Ø 3.9 mm
- Max. conductor cross-section: 1.0 mm²
- Outer diameter: 8.0 mm
- Rated voltage: 1000 V, CAT II
- Rated voltage: 600 V, CAT III
- Rated current: 19 A
- Contact plating: Au
- Contact material: CuZn
- Standard: IEC EN 61010-031
- Approval: UR
