Electrical Safety Tester — GPT-9803
What it is and what it does

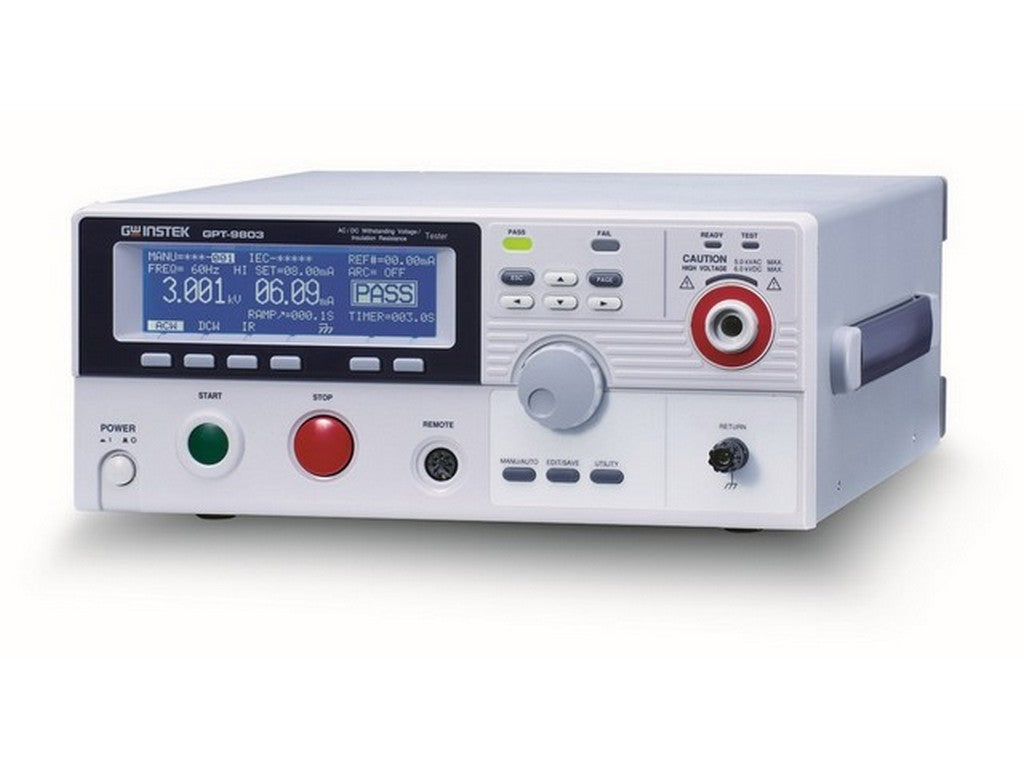

The GPT-9803 from GW-INSTEK is an electrical safety tester in the GPT-9800 series, designed to perform AC and DC withstand voltage tests as well as insulation resistance measurements. The device can generate controlled test voltages for both AC and DC and measures corresponding current and resistance values within the specified measurement ranges.Features and operation
As a technical tester, I briefly explain the verified functions, as shown in the manufacturer's specifications:- AC withstand voltage: 0.050 kV to 5.000 kV.
- DC withstand voltage: 0.050 kV to 6.000 kV.
- Insulation resistance tests with test voltages from 50 V to 1000 V DC.
- Measurement of current and resistance within the specified ranges in the datasheet.
- Selectable mains frequency for AC output: 50 Hz / 60 Hz.
Technical reference
For detailed technical data and all measurement accuracies, please refer to the manufacturer's specifications. See datasheet from the manufacturerSpecifications
- Manufacturer: GW-INSTEK
- Model: GPT-9803
- Functions: AC withstanding, DC withstanding, Insulation resistance (as specified for GPT-9803 in the GPT-9800 series)
- AC output-voltage range: 0.050 kV ~ 5.000 kV
- AC output-voltage resolution: 2 V/step
- AC output-voltage waveform: Sine wave
- AC output-voltage frequency: 50 Hz / 60 Hz (selectable)
- AC maximum rated load: 200 VA
- AC maximum rated current: 40 mA (0.5 kV < V ≦ 5 kV); 10 mA (0.05 kV ≦ V ≦ 0.5 kV)
- DC output-voltage range: 0.050 kV ~ 6.000 kV
- DC output-voltage resolution: 2 V/step
- DC maximum rated load: 50 W
- DC maximum rated current: 10 mA (0.5 kV < V ≦ 6 kV); 2 mA (0.05 kV ≦ V ≦ 0.5 kV)
- Insulation test voltage: 50 V ~ 1000 V DC
- Insulation resistance measurement range: 1 MΩ ~ 9500 MΩ
- Insulation output impedance: 600 kΩ
- Dimensions: 330(W) x 148(H) x 452(D) mm, approx. 19 kg (max.)
