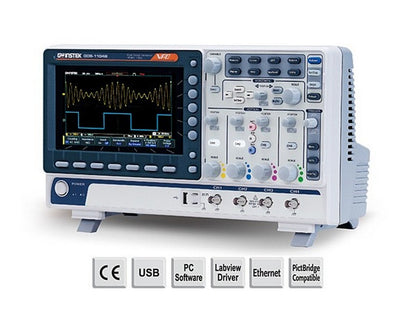

GW-INSTEK GDS-1104B
The GW-INSTEK GDS-1104B is a digital storage oscilloscope with four channels and 100 MHz bandwidth. It is used to view and analyze electrical signals over time and simultaneously monitor multiple signals. In practice, it is a measuring instrument for troubleshooting, developing, and inspecting electronics where it is necessary to understand signal shape, timing, and progression.
With up to 1 GSa/s real-time sampling rate and a maximum memory depth of 10 Mpts per channel, the instrument can store long signal sequences and display details that might otherwise be easily lost. The 7" WVGA color screen provides a good overview, and a waveform update rate of up to 50,000 waveforms per second makes it easier to capture rapid changes and transient errors.
For many workshops and development benches, it is also practical that the oscilloscope can work with serial buses such as I2C, SPI, UART, CAN, and LIN. This means that it can both trigger on and decode signals from common communication lines. The built-in FFT function is used when the signal needs to be viewed in the frequency domain instead of just as a time-domain waveform.
Connections include USB 2.0 host, USB device for remote control, and an RJ-45 Ethernet port for the four-channel models. This makes it easier to integrate the instrument into a professional measurement environment where data needs to be shared or controlled from a PC.
See datasheet from the manufacturerTypical applications
- Troubleshooting and measurement in electronic circuits
- Development and testing in R&D environments
- Education and general measurement tasks
- Analysis of serial buses such as I2C, SPI, UART, CAN, and LIN
Specifications
- Manufacturer: GW-INSTEK
- MPN: GDS-1104B
- Channels: 4
- Bandwidth: 100 MHz
- Max. real-time sampling rate: 1 GSa/s
- Max. record length: 10 Mpts per channel
- Display: 7" 800 × 480 WVGA color TFT LCD
- Waveform update rate: up to 50,000 wfms/s
- Serial bus trigger/decoding: I2C, SPI, UART, CAN, and LIN
- FFT display: 1 Mpts
- USB 2.0 high-speed host port
- USB device port for remote control
- RJ-45 10/100 Mbps Ethernet port
- EAN/GTIN: not stated in the verified data
