Product Overview

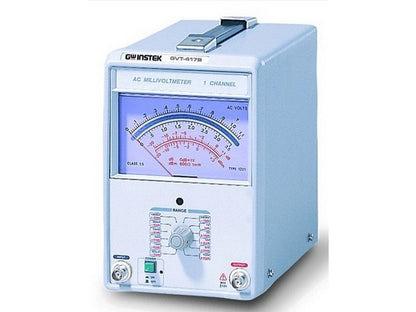

This unit from GW Instek is a single-channel analog AC millivoltmeter. The GVT-417B measures AC voltage from 300 µV to 100 V across 12 measurement ranges and indicates decibel level in defined steps.Features and Contents
- Single-channel analog AC millivoltmeter (GVT-417B).
- Measurement range: 300 µV to 100 V in 12 ranges.
- Indication accuracy: ±3% of full scale.
- Instrument input: 10 MΩ (~40 pF).
- Frequency response: 20 Hz–200 kHz ±3% and 10 Hz–1 MHz ±10% (reference 1 kHz).
- Supplied with user manual, power cord, and one GTL-101 test lead for the GVT-417B.
Documentation
Refer to the manufacturer's specifications for complete technical documentation: See manufacturer's datasheet.Typical Applications
- The GVT-417B is used for measuring AC voltage levels in the range 300 µV–100 V and for displaying levels in decibels on the specified ranges.
Technical Operation
Output and Power Supply
- Output level: approximately 0.1 Vrms at full scale.
- Distortion: < 2%.
- Power supply: AC 115V/230V ±10%, 50/60 Hz; max. power consumption 10 VA.
Specifications
- Product: GVT-417B (single-channel analog AC millivoltmeter)
- Measurement range: 300 µV ~ 100 V in 12 ranges
- Decibel range: -70 dB ~ -40 dB in 12 ranges (refer to manufacturer's specifications)
- Accuracy: ±3% of full scale
- Frequency response: 20 Hz ~ 200 kHz ±3%; 10 Hz ~ 1 MHz ±10% (reference 1 kHz)
- Input impedance: 10 MΩ, approx. 40 pF
- Output level: approx. 0.1 Vrms at full scale
- Distortion: < 2%
- Power supply: AC 115V/230V ±10%, 50/60 Hz; power consumption 10 VA max.
- Dimensions: 130(W) × 210(H) × 295(D) mm
- Weight: approx. 2.8 kg
- Included accessories: user manual, power cord, GTL-101 test lead
Sources
Content generated using AI – subject to errors.
Contact HIN for further information about the product.
