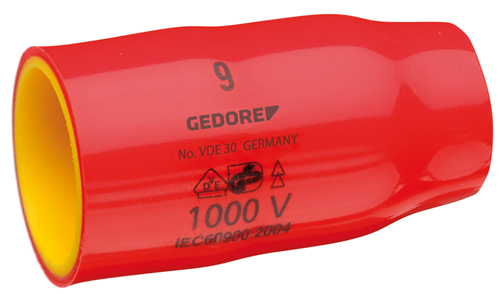

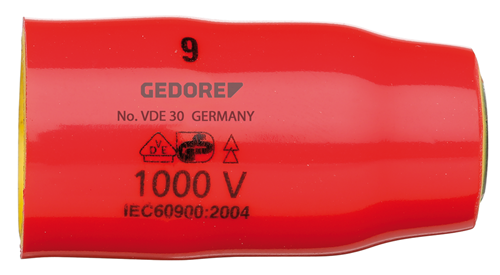

Gedore socket 3/8 1000V insulated SW12mm w/internal hexagon

Product Overview

This VDE 30 12 (article number 2946432) is a 3/8" hexagon VDE socket with a 12 mm width across flats. The product is manually operated and has an internal square drive connection in accordance with DIN 3120 - C 10 and ISO 1174. The VDE 30 12 is specified as VDE-insulated up to 1000 V according to EN 60900/IEC 60900.

Material and Insulation

The socket is made of chrome-vanadium steel 31CrV3 and comes with 2-fold Check-Tool insulation. The insulation overhang is stated as 16–18 mm, and the product is specified as VDE-insulated up to 1000 V according to the aforementioned standards.

Documentation

For full product details and supplier information, please refer to the manufacturer's product page: See manufacturer's product page

Specifications

• Product name: VDE 30 12 (code 2946432).
• Manufacturer: GEDORE.
• Type: 3/8" hexagon VDE socket, 6-point.
• Width across flats: 12 mm.

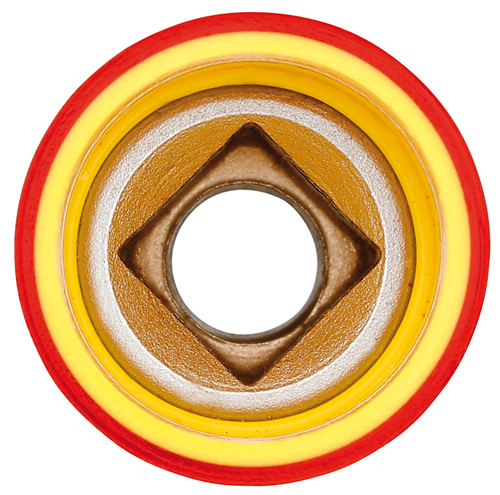

• Drive mount, square: 10.0 mm (3/8").
• Material: Chrome-vanadium steel 31CrV3.
• Insulation: 2-fold Check-Tool insulation, VDE-insulated up to 1000 V (EN 60900/IEC 60900).
• Insulation overhang: 16–18 mm.
• Total dimensions: total width 23 mm, total/working length 44.0 mm.
• Weight (net): 0.04 kg.
• Insert-Ø1: 21.2 mm; Insert-Ø2: 23.0 mm.
• EAN: 4010886947463.
• Quantity per delivery: 1 pc.
• Standards specified: ISO 1174; EN 60900/IEC 60900; DIN 3120 - C 10.
