Product Overview
The GEDORE VDE 30 10 (code no. 2946416) is a VDE-insulated 3/8" socket insert with a 6-point hex profile and a 10 mm width across flats. This description is based on the manufacturer's product page and only contains the specifications listed therein.
Material and Insulation
- Material: Chrome-vanadium steel 31CrV3.
- Protective insulation: VDE-insulated and tested up to 1000 V according to EN 60900 / IEC 60900.
- 2-fold Check-Tool insulation with 16–18 mm insulation overlap.

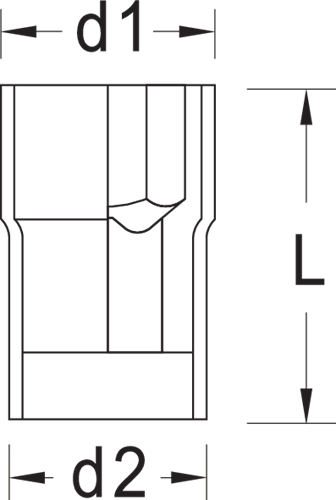

Dimensions and Mechanical Data
- Drive: 3/8" square drive (drive connector square [inch]: 3/8").
- Width across flats: 10 mm.
- Working length: 44.0 mm.
- Overall width: 23 mm.
- Weight: 0.035 kg.
- Insert-Ø: 18.7 mm / 23.0 mm (as stated on the manufacturer's page).
The product designation on the manufacturer's page is "VDE 30 10 / Code no. 2946416". The GEDORE VDE 30 10 is highlighted as VDE-insulated and intended for manual operations with a square drive according to the current specifications on the product page.
Specifications
- Product name: GEDORE VDE 30 10 (code no. 2946416).
- Manufacturer: GEDORE.
- Material: Chrome-vanadium steel 31CrV3.
- Drive mount, square: 10.0 mm (drive connector square [inch]: 3/8").
- Profile: 6-point hex, width across flats 10 mm.
- Working length: 44.0 mm.
- Overall width: 23 mm.
- Weight: 0.035 kg.
- Insulation: 2-fold Check-Tool insulation, VDE-insulated up to 1000 V (EN 60900 / IEC 60900).
- Insulation overlap: 16–18 mm.
- Standards indicated: DIN 3120 - C 10; ISO 1174; EN 60900 / IEC 60900.
- EAN: 4010886947449.
Source: Product information from GEDORE's official product page (product code 2946416).
