Product Overview

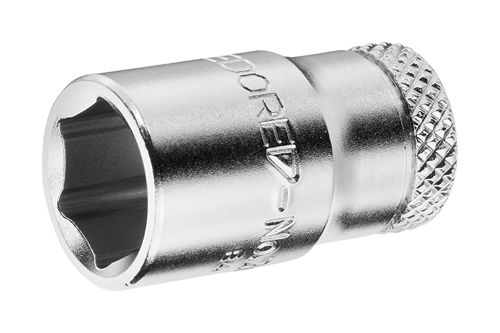

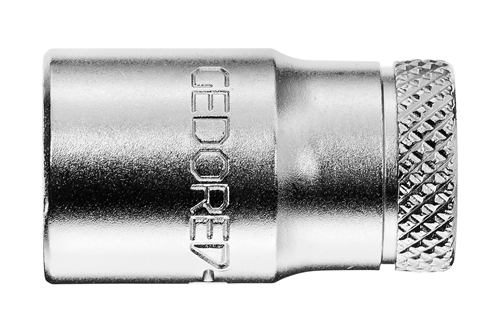

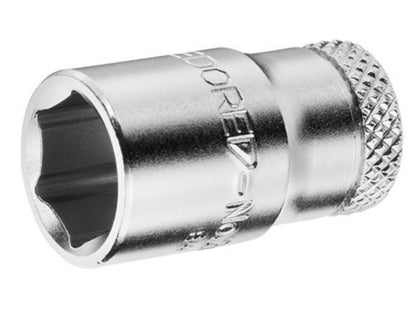

GEDORE 6165910 (20 7) – 1/4" Drive Hexagon Socket
This 1/4"-drive hexagon socket is GEDORE's item 6165910 (20 7) with a 7 mm measurement across flats. The GEDORE 6165910 (20 7) is described as a hand-operated socket with a square drive according to the manufacturer's product description and standard specifications.Technical Description
The socket is made of GEDORE vanadium steel 31CrV3 and is finely ground with a matt chrome plating. It uses a square drive according to DIN 3120 – C 6.3 and is stated to have a ball retention groove. The product text also states that the socket is knurled for a good grip during manual operation. Several dimensions and technical measurements are specified in the product text and can be found in the manufacturer's information (see source below).Documentation
Product information has been verified on the manufacturer's product page at GEDORE (the manufacturer's official product description). No separate datasheet URL or manufacturer video is provided in the input data.Specifications
- Product Name: GEDORE 6165910 (20 7)
- Type: 1/4" Drive Hexagon Socket
- Width across flats: 7 mm
- Drive connector (inch): 1/4"
- Drive mount, square (metric): 6.3 mm
- Standards: DIN 3124; ISO 2725-1; DIN 3120 – C 6.3; ISO 1174 (stated in manufacturer text)
- Material: GEDORE vanadium steel 31CrV3
- Surface: Matt chrome-plated (finely ground)

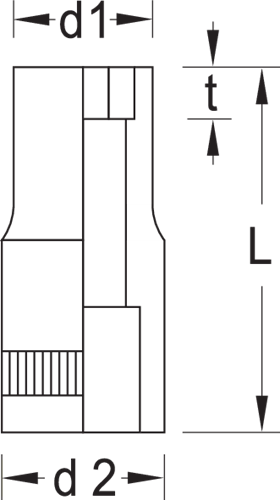

- Overall length: 25 mm
- Working length: 25.0 mm
- Operating depth: 7.0 mm
- Overall width: 12 mm
- Overall height: 12 mm
- Weight: approx. 0.01 kg
- Insert-Ø1: 11.0 mm; Insert-Ø2: 12.0 mm
- EAN: 4010886616598
Source: Manufacturer's product page (GEDORE).
