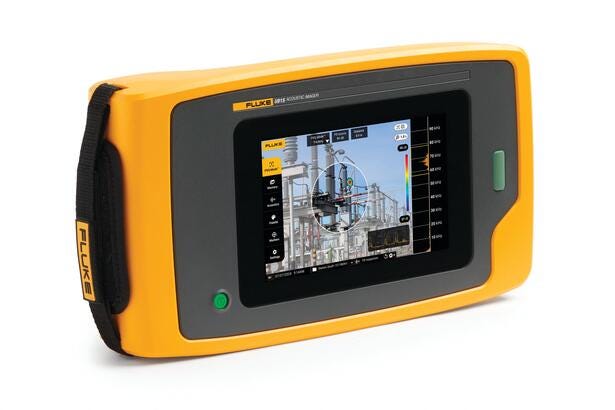

Fluke ii915 Acoustic Imager
The Fluke ii915 Acoustic Imager (Model FLK‑II915, Part#: 5594661) is an acoustic imager for detecting and assessing leaks, partial discharges, and mechanical anomalies. The device features dedicated on-screen operating modes: LeakQ™, PDQ™, and MecQ™ for leak quantification, PD classification, and mechanical fault detection, respectively.
Features and User Interface
- Acoustic sensor frequency range: 2 kHz to 100 kHz.
- Stated detection range: 0.5 to >120 meters (1.6 to >393 feet).
- 7" (1280 x 800) capacitive touchscreen.
- Built-in 5 MP visible light camera.
- Internal storage: 32 GB; video format: MP4.
- Charged operating time: approximately 6 hours; replaceable Li-ion battery.

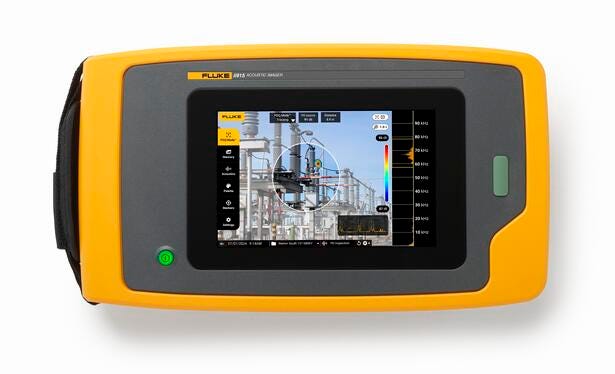

The Fluke ii915 acoustic imager presents a combined SoundMap™ view, where acoustic data is blended with a visual image to facilitate localization and documentation. The user interface supports annotation, photo note-taking, and export via USB-C, as well as customized frequency profiles and real-time data on the device.
Typical Applications

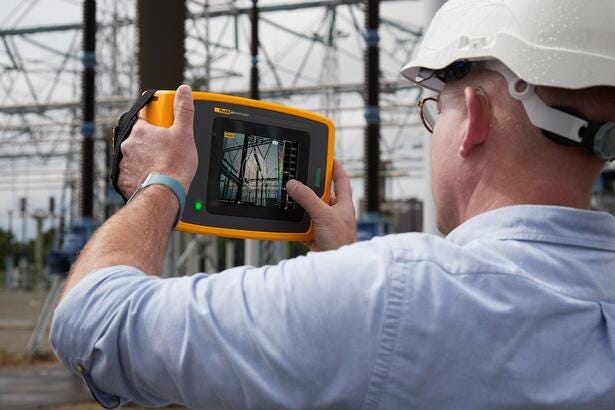

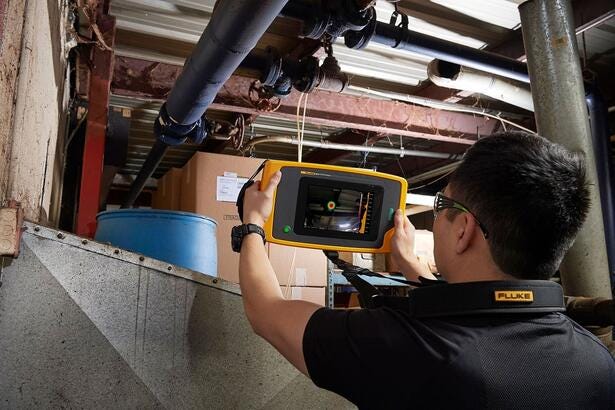

- Detection and assessment of leaks using LeakQ™ mode.
- Identification and classification of partial discharges with PDQ™ mode.
- Detection and documentation of mechanical anomalies via MecQ™ mode.
Specifications
- Product: Fluke ii915 Acoustic Imager (Model FLK‑II915, Part#: 5594661).
- Acoustic frequency band: 2 kHz to 100 kHz.
- Detection range: 0.5 to >120 m (1.6 to >393 ft).
- Display: 7" 1280 x 800 capacitive touchscreen.
- Visible camera: 5 MP built-in camera.
- Storage: 32 GB internal.
- Video format: MP4.
- Battery: Rechargeable, replaceable Li-ion; operating time approximately 6 hours; charging time specified in manufacturer documentation.
- On-device modes: LeakQ™, PDQ™, MecQ™.
- Tripod connection: available (1/4"-20 UNC according to manufacturer documentation).
- Note: Specifications are taken from the manufacturer's datasheet.
